In life sciences, biopharmaceutical research, microbiology, electronics manufacturing, and materials science, environmental cleanliness can directly affect the accuracy and repeatability of experimental results. When an application requires protection from airborne particles, moisture, oxygen, or external contamination, a stable and easy-to-use acrylic glove box can provide an economical and efficient controlled-environment solution.

Welso acrylic glove boxes are manufactured from highly transparent acrylic, combining excellent visibility, convenient hands-on operation, and cost-effective performance. They are designed to help laboratories create cleaner, more controlled workspaces for aseptic handling, sample preparation, sensitive material processing, and precision assembly.

What Is an Acrylic Glove Box?

An acrylic glove box is an enclosed laboratory workstation made from transparent acrylic panels. Operators perform internal procedures through sealed gloves, helping protect samples from outside contamination while also providing a physical barrier between the operator and materials inside the chamber.

Compared with open-bench operation, an acrylic glove box can help establish a relatively clean, low-humidity, low-oxygen, or isolated working environment when used with the appropriate gas, filtration, monitoring, and transfer configurations. It is widely used for biological experiments, chemical handling, sensitive materials, and precision electronic assembly.

Why Are More Laboratories Choosing Acrylic Glove Boxes?

1. High Transparency for Clear, Real-Time Observation

Unlike conventional metal glove boxes, transparent acrylic glove boxes provide a broad, direct view of the working area. Welso uses high-transmittance acrylic panels with light transmission of approximately 92%–96%, allowing operators to observe samples and procedures from multiple angles.

The transparent enclosure supports accurate handling and real-time sample monitoring. Scratch-resistant surface treatment also helps maintain clear visibility during routine laboratory use.

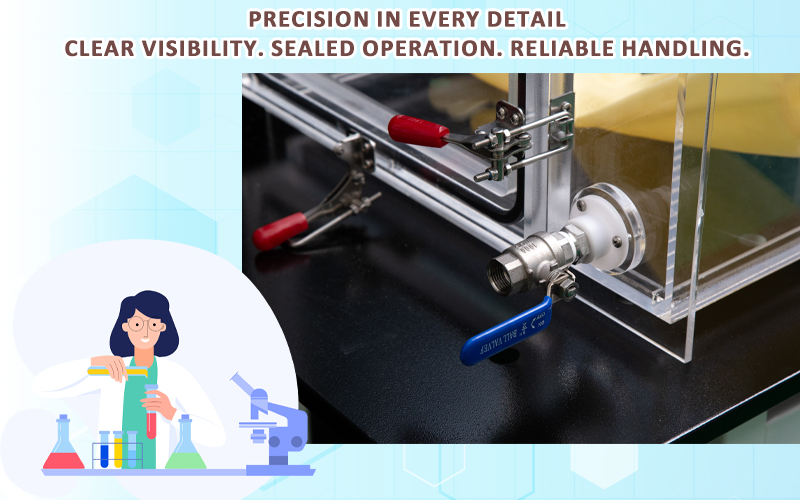

2. Sealed Design to Help Reduce Contamination Risk

Dust, microorganisms, moisture, and airborne contaminants can all affect sensitive procedures. Welso acrylic glove boxes use a double-sealing structure to help reduce outside-air ingress and maintain a more stable internal environment.

Depending on the application, systems may be configured with:

Gas purge interfaces

Vacuum transfer chambers

Vacuum ports

UV sterilization lamps

Moisture and oxygen monitoring systems

These options allow laboratories to tailor the glove box to their cleanliness and environmental-control requirements.

3. Lightweight Construction for Flexible Laboratory Deployment

Acrylic is significantly lighter than stainless steel, making acrylic glove boxes easier to position, relocate, and deploy. They can be placed beside a clean bench or used as an independent laboratory workstation.

Removable internal trays provide stable placement for Petri dishes, beakers, reaction vessels, and other laboratory tools, improving workflow efficiency and operator convenience.

4. Cost-Effective and Easy to Maintain

For many laboratories, an acrylic glove box offers an effective balance between performance and budget. Compared with stainless-steel glove boxes, it can provide:

Lower initial procurement costs

Straightforward daily cleaning and maintenance

Good compatibility with many routine laboratory reagents

Easy cleaning with alcohol-based disinfectants, subject to chemical-compatibility requirements

This makes acrylic glove boxes a practical choice for universities, research institutes, startup laboratories, and corporate R&D departments.

Typical Applications of Welso Acrylic Glove Boxes

With high transparency, reliable sealing, and flexible configuration options, Welso acrylic glove boxes are suitable for a wide range of controlled-environment applications.

Cell Culture and Biological Research

Stem-cell culture and handling

Cell passaging

Aseptic sample preparation

Molecular Biology and Microbiology

PCR sample aliquoting

DNA/RNA sample handling

Microbial culture and strain isolation

Materials Science and Chemistry

Powder weighing

Handling of moisture-sensitive materials

Loading and unloading samples for planetary ball mills

Dust-proof and moisture-control procedures

Electronics and Optoelectronics

Precision electronic-component assembly

Optoelectronic material handling

Clean-environment operations for sensitive components

Welso supports both standard and custom acrylic glove box solutions for academic laboratories, pharmaceutical and biotech companies, electronics manufacturers, and advanced-material research organizations.

How to Choose the Right Acrylic Glove Box

1. Choose the Appropriate Acrylic Thickness

Welso offers two common acrylic panel thicknesses:

6 mm acrylic panel

10 mm acrylic panel

For most laboratory applications, the 10 mm configuration provides greater overall rigidity and structural stability.

2. Select the Right Chamber Size

Available standard sizes include:

300 × 400 × 500 mm

700 × 450 × 550 mm

800 × 550 × 600 mm

900 × 500 × 500 mm

900 × 600 × 700 mm

1000 × 750 × 700 mm

For larger instruments, such as planetary ball-mill jars, or for laboratories with special space requirements, Welso also provides custom dimensions. Large acrylic glove boxes of approximately 1.2 m can be customized for specific applications.

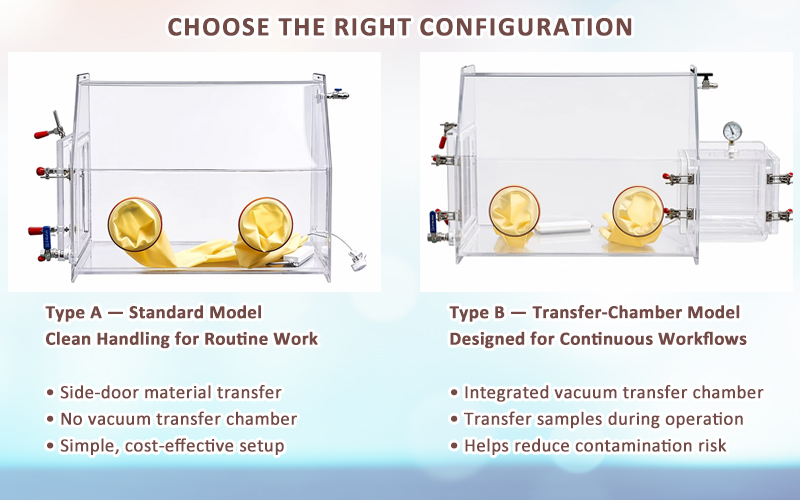

3. Match the Configuration to Your Workflow

Welso offers two commonly selected configurations.

Type A — Standard Model

Main chamber is not vacuum-compatible

No vacuum transfer chamber

Materials are transferred through a side door

Suitable for routine clean handling and standard laboratory applications

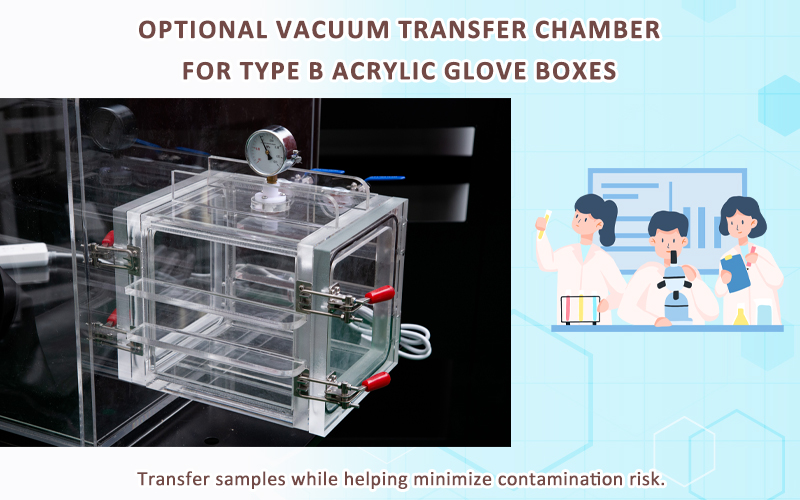

Type B — Upgraded Model

Main chamber is not vacuum-compatible

Equipped with a vacuum transfer chamber

Samples can be transferred during operation through the transfer chamber

Helps reduce contamination risk associated with opening the main chamber

Better suited for continuous workflows and applications with higher cleanliness requirements

Optional Accessories and Upgrades

To support different laboratory processes, Welso offers a range of optional modules:

2 L / 4 L vacuum pumps

Mobile stands

Automatic pressure controllers

Foot-pedal pressure controllers

Domestic or imported moisture/oxygen displays

Automatic moisture and oxygen control systems

UV sterilization lamps

Clean air and dust-removal systems

Gas purification systems for H₂O and O₂ levels of ≤0.1 ppm

Laboratories can select the configuration that best fits their process, contamination-control target, and budget.

Frequently Asked Questions

Can Welso customize an acrylic glove box?

Yes. Welso can customize glove box length, width, height, access ports, transfer-chamber arrangements, and optional systems according to laboratory space, equipment dimensions, and application requirements.

Can an acrylic glove box be used for aseptic work?

Yes, for appropriate aseptic or clean-handling workflows when equipped, validated, and operated using suitable cleaning, disinfection, and contamination-control procedures. Optional UV sterilization and filtration systems can further support clean operation. Users should validate the final setup against their specific process and regulatory requirements.

Is maintenance easy?

Yes. Consumable components such as gloves and sealing rings use standard designs for convenient replacement. Routine maintenance can generally be completed without specialized tools, helping reduce long-term operating costs.

Choose a Welso Acrylic Glove Box for Your Laboratory

For laboratories that require clean, dust-controlled, low-humidity, or isolated operating conditions, a properly configured acrylic glove box can improve workflow consistency, experimental efficiency, and operator protection.

Welso provides standard models, optional environmental-control modules, and customized acrylic glove box solutions for research institutions, universities, biopharmaceutical laboratories, electronics manufacturing, and advanced-material R&D.

Learn more about available models, dimensions, and configuration options on the Welso Acrylic Glove Box product page, or contact the Welso sales team for application-specific selection advice and a quotation.
