In plasmid construction and molecular cloning workflows, competent cells are essential for successful DNA transformation. By inducing a physiological state that enhances DNA uptake, Escherichia coli can efficiently internalize recombinant plasmids for amplification and downstream applications.

Based on preparation strategy, competent cells are classified into natural competent cells and chemically or physically induced competent cells. In plasmid construction experiments, chemically prepared competent E. coli are most widely used. Common preparation methods include electroporation, calcium chloride method, Hanahan method, and Inoue method.

This article focuses on the Calcium Chloride (CaCl₂) method for competent cell preparation, while highlighting Welso’s capability to provide a complete range of laboratory consumables and equipment for molecular biology laboratories.

What Are Competent Cells in Molecular Cloning

Competent cells are bacterial cells treated to increase membrane permeability, enabling efficient uptake of foreign DNA during transformation. In plasmid construction experiments, high-quality competent cells directly impact:

● Transformation efficiency

● Plasmid amplification yield

● Experimental reproducibility

● Downstream cloning success rate

The CaCl₂ method remains one of the most reliable and cost-effective approaches for routine laboratory competent cell preparation.

Principle of the Calcium Chloride Method

Under cold conditions, Ca²⁺ ions neutralize the negative charges on both DNA molecules and the bacterial cell membrane. This reduces electrostatic repulsion and facilitates DNA entry into the cells. Combined with heat shock treatment, transformation efficiency can be significantly improved.

For laboratories requiring stable and repeatable results, standardized equipment and high-quality consumables are critical throughout the process.

Welso provides integrated laboratory solutions covering competent cell preparation, bacterial culture, centrifugation, storage, and transformation analysis.

Step-by-Step Competent Cell Preparation Workflow

1. LB Media and Reagent Preparation

● Prepare LB liquid medium and sterilize by autoclaving

● Prepare LB agar plates and pour at approximately 50°C

● Prepare sterile 80% glycerol

Welso supplies:

● Laboratory autoclaves

● Sterile culture flasks and bottles

● Petri dishes

● Media storage containers

● General microbiology consumables

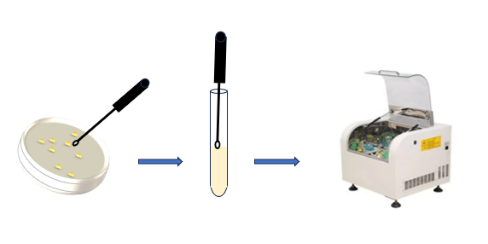

2. Bacterial Streaking and Colony Isolation

Remove DH5α strain from -80°C storage and thaw on ice. Streak onto antibiotic-free LB agar plates and incubate at 37°C for 12–16 hours.

Welso supplies:

● Disposable inoculating loops

● CO₂-free incubators

● -80°C ultra-low temperature freezers

● Microbiology culture consumables

3. Single Colony Expansion

Pick a single colony and inoculate into 5 mL LB liquid medium. Incubate in a shaking incubator at:

37°C

250 rpm

6–8 hours

Welso supplies:

● Shaking incubators

● Conical flasks

● Sterile culture tubes

● Centrifuge tubes

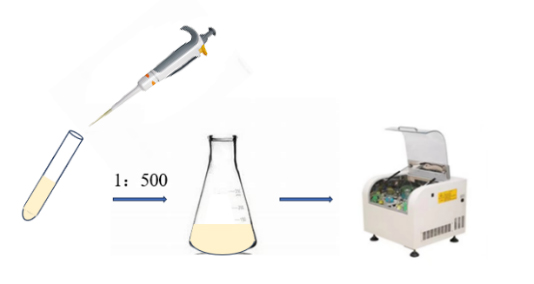

4. Preparation of Log-Phase Cells

Dilute the culture at 1:500 into 200 mL LB medium and continue shaking at 37°C. Monitor OD600 using a UV spectrophotometer. When OD600 reaches 0.6–0.8, stop incubation to ensure cells are in logarithmic growth phase.

Welso supplies:

● UV-Vis spectrophotometers

● Laboratory incubator shakers

● Precision pipettes and sterile tips

● High-quality culture vessels

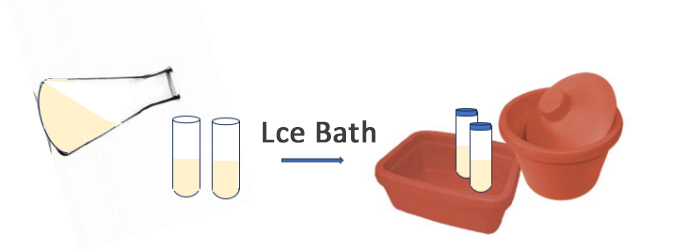

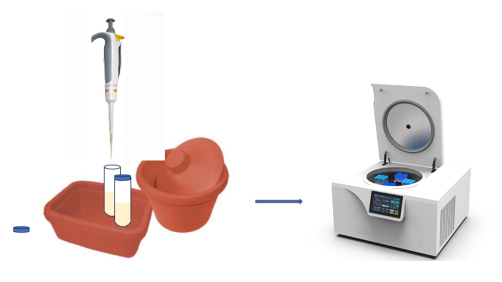

5. Ice Treatment and Calcium Chloride Incubation

Chill culture on ice for 10 minutes

Centrifuge at 4°C, 4000 rpm for 10 minutes

Resuspend pellet in pre-chilled 0.1M CaCl₂

Repeat centrifugation and CaCl₂ treatment

Incubate on ice

Welso supplies:

● Refrigerated centrifuges

● 50 mL centrifuge tubes

● Ice buckets and cold chain accessories

● Pipetting systems

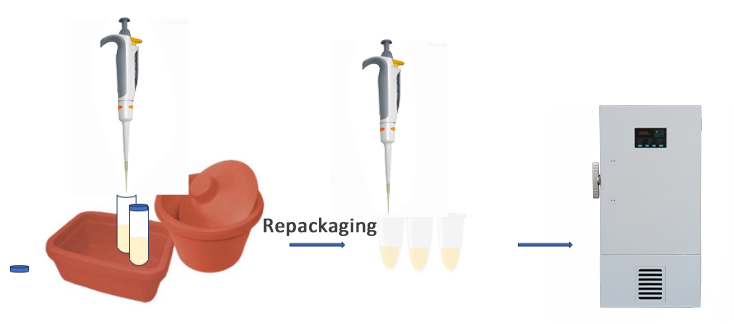

6. Competent Cell Aliquoting and Storage

Resuspend bacterial pellet in CaCl₂ and glycerol solution. Aliquot into sterile 1.5 mL microcentrifuge tubes and immediately store at -80°C.

Welso supplies:

● Microcentrifuge tubes

● Cryo storage boxes

● Ultra-low temperature freezers

● Laboratory tube racks

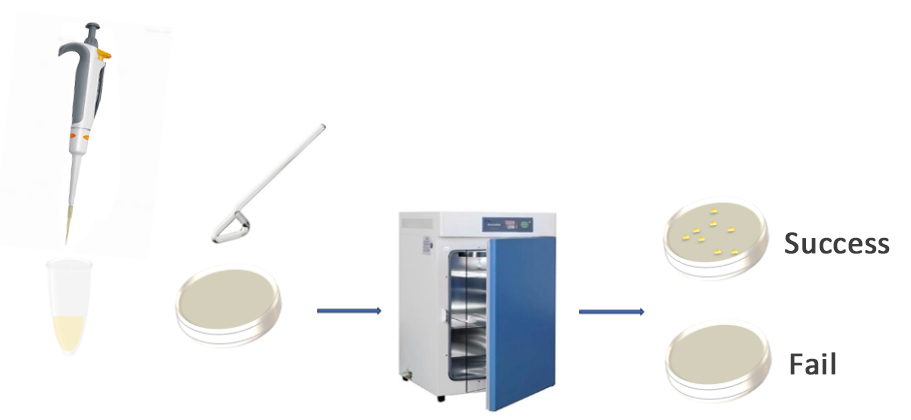

7. Transformation Efficiency Testing

Transform plasmid DNA into freshly prepared competent cells. Plate onto selective LB agar and incubate at 37°C. Count positive colonies to evaluate transformation efficiency.

Welso supplies:

● Cell spreaders

● Petri dishes

● Selective media preparation supplies

● Colony counting accessories

Why Choose Welso for Molecular Biology Laboratory Equipment and Consumables

Welso is a professional laboratory consumables and equipment supplier providing comprehensive solutions for:

● Competent cell preparation

● Plasmid construction workflows

● Bacterial transformation experiments

● Molecular biology laboratories

● Biotechnology and research institutions

Our product portfolio includes:

● Centrifuges

● Incubator shakers

● Spectrophotometers

● Autoclaves

● Ultra-low temperature freezers

● Microbiology consumables

● Cell culture products

By integrating laboratory equipment and consumables into a single procurement system, Welso helps research laboratories improve efficiency, ensure reproducibility, and reduce operational costs.
