Water Bath
Product Details
Description:

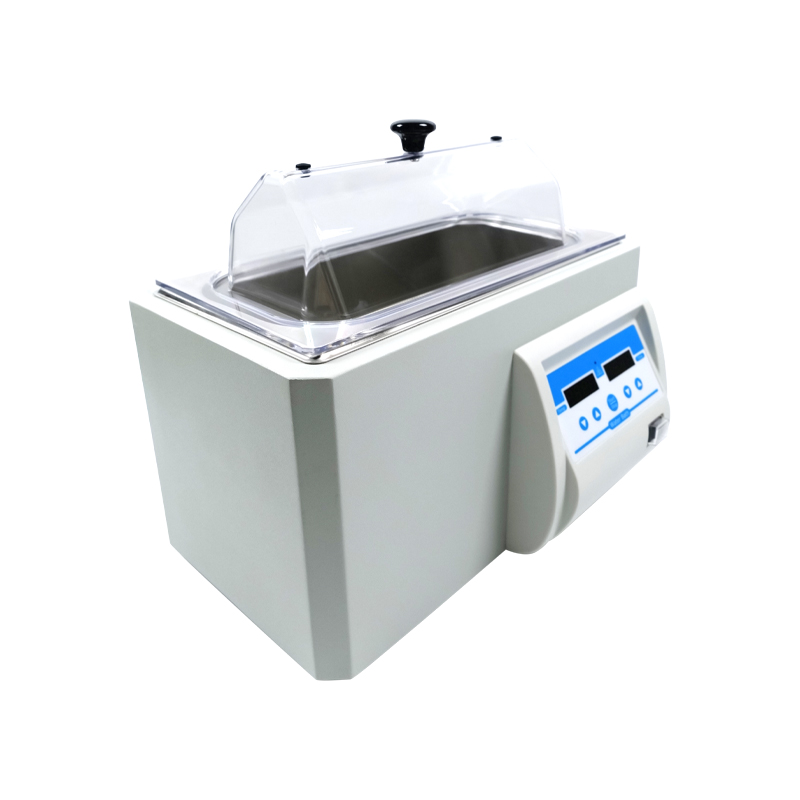

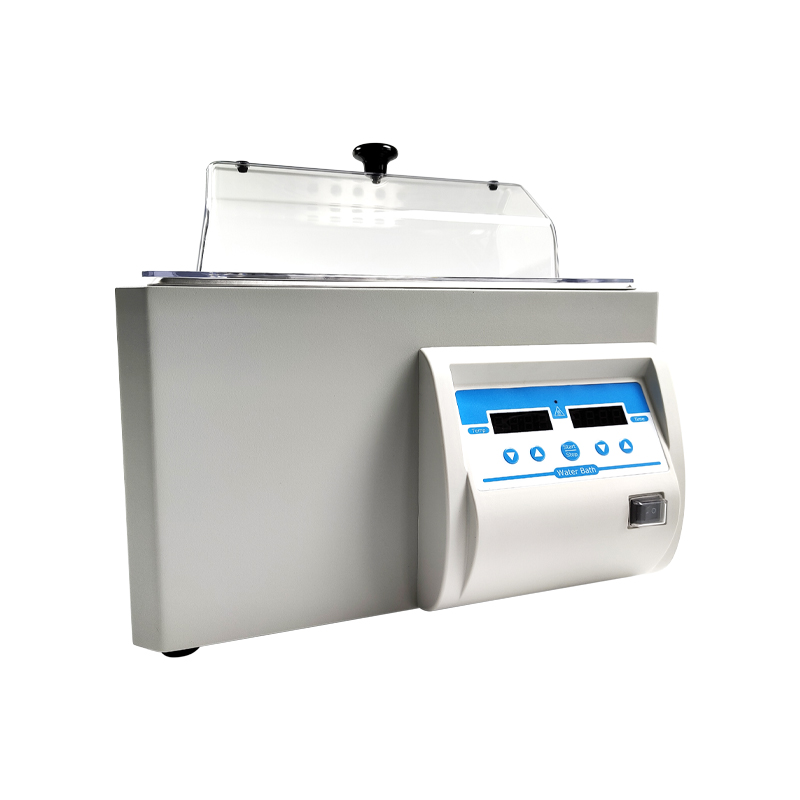

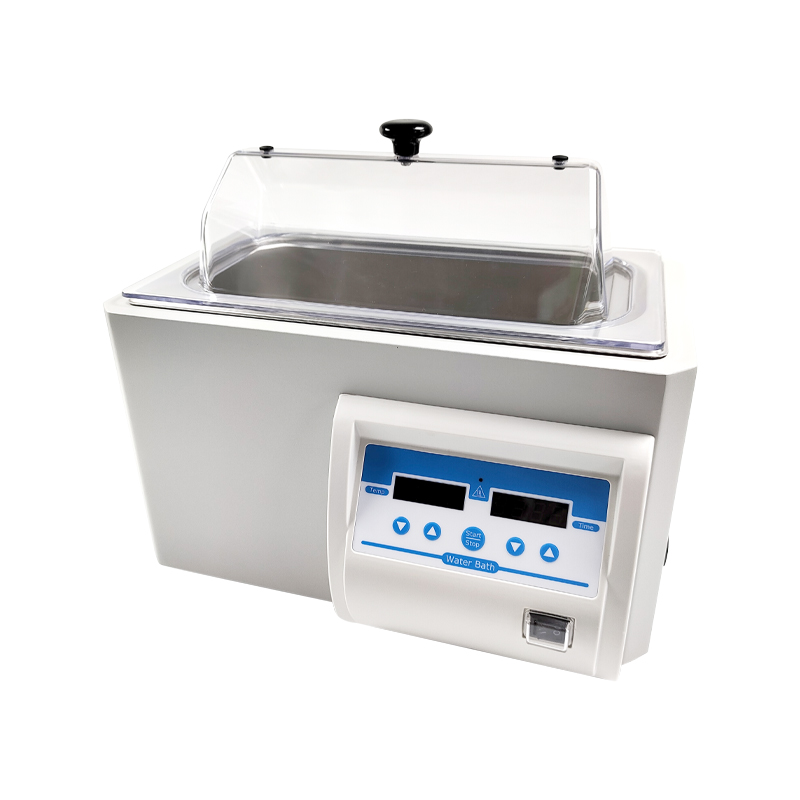

The Thermostat Water Bath is a high-precision temperature-controlled system designed to deliver consistent and uniform heating for laboratory and research applications. Engineered for reliability and ease of use, the unit features microprocessor-based control for accurate temperature and time regulation, displayed in real-time on independent LED screens.
Its gabled lid design effectively channels condensation back into the bath, preventing drips on work surfaces and protecting sensitive samples. The integrated aluminum plate conduction system ensures fast and even heat distribution, while eliminating the risk of dry burning. Additionally, its durable stainless steel tank is easy to clean and designed with a leak-resistant sealing structure.
Key Features:
Independent LED Displays for precise temperature and time settings.
Microprocessor Control ensures uniform temperature with high stability and accuracy.
Aluminum Plate Heating Technology: Enables rapid and even heat transfer without risk of dry burn.
Stainless Steel Inner Tank with sealed construction to prevent leakage.
Ergonomic Side Drain Valve for convenient wastewater disposal.

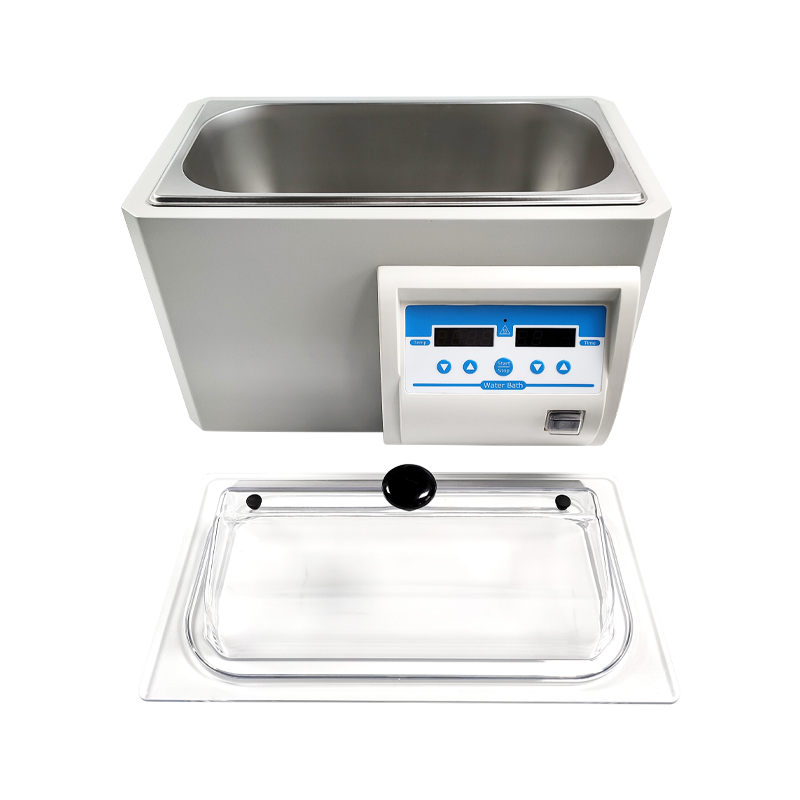

Gabled Lid Design: Channels condensation to front and back, protects samples, and accelerates heating.
High-Performance Insulation: Retains thermal stability while keeping the exterior cool.
Overheating Protection System included for safe operation.
Parameters:
Project | WTB5L-1 |
Temp. setting range | 0°C~100°C |
Temp. control range | RT.+5°C~100°C |
Timing range | 1min~99h59min/∞ |
Temp. accuracy | ≤±0.3°C @37°C |
Display accuracy | 0.1°C |
Temp. uniformity | ≤±0.3°C @37°C |
Heating time | ≤ 30min(25°C~100°C) |
Tank capacity | 5L |
Heating method | Aluminum plate heat conduction |
Working area | 263*120*115mm |
Power | 900W |
Voltage | AC220V or 110V/50-60Hz |
Fuse | 250V 3A Ф5*20 |
Dimension (mm) | 355*270*306mm |
Weight (kg) | 5.1kg |
