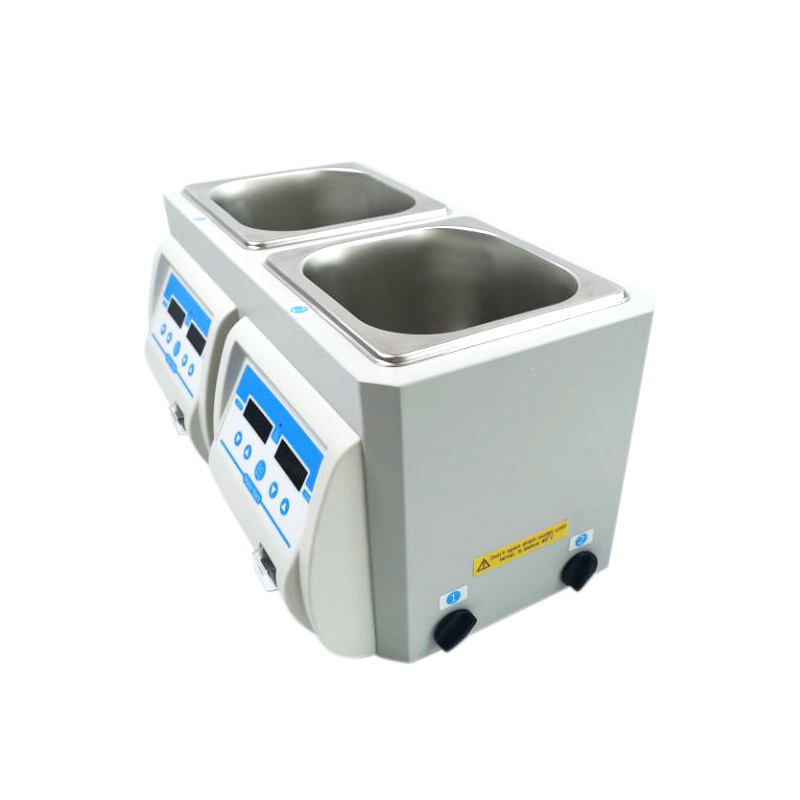

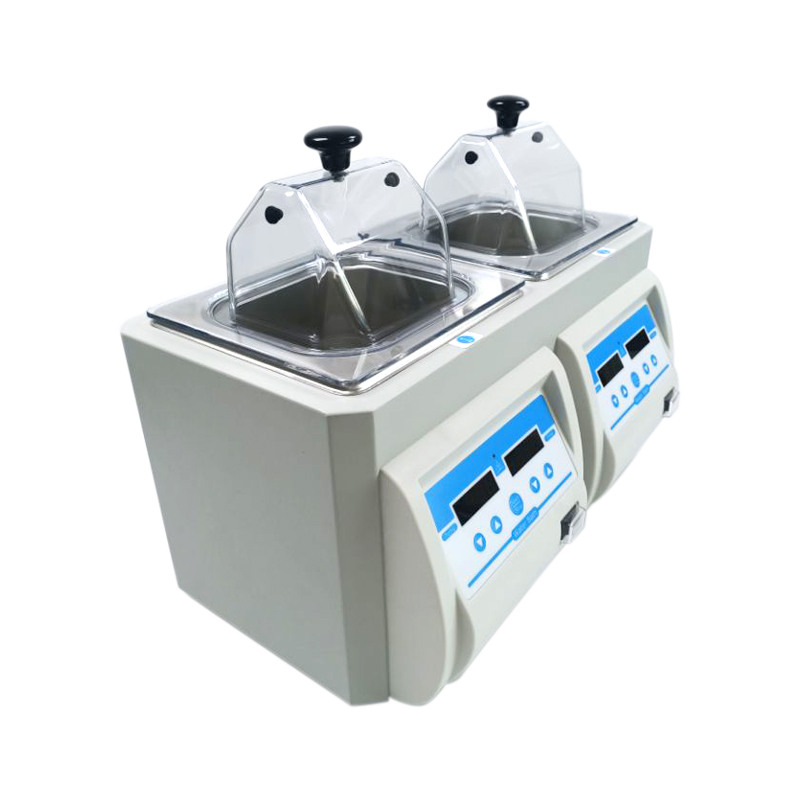

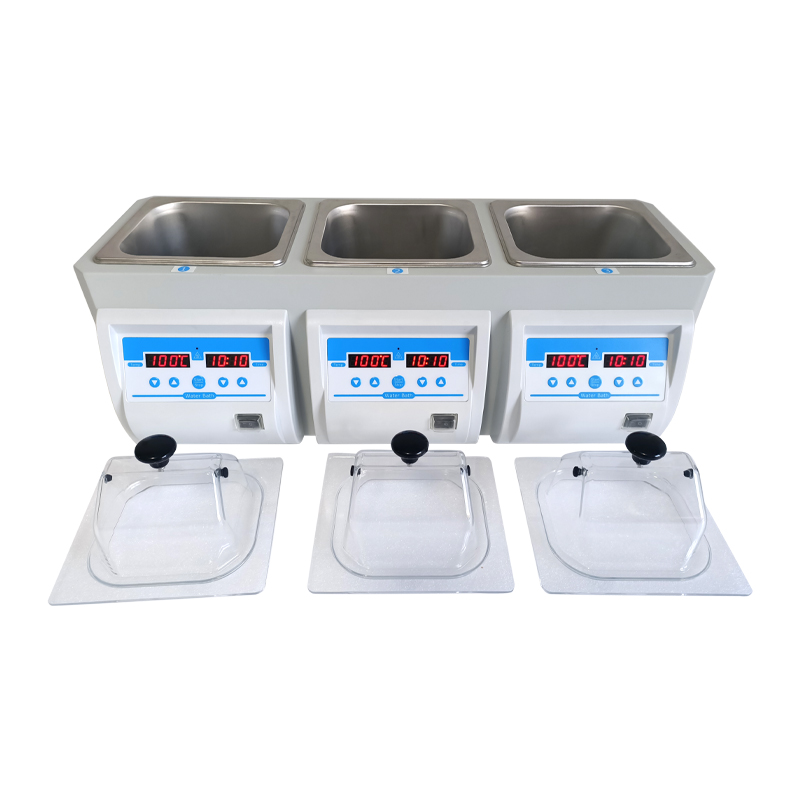

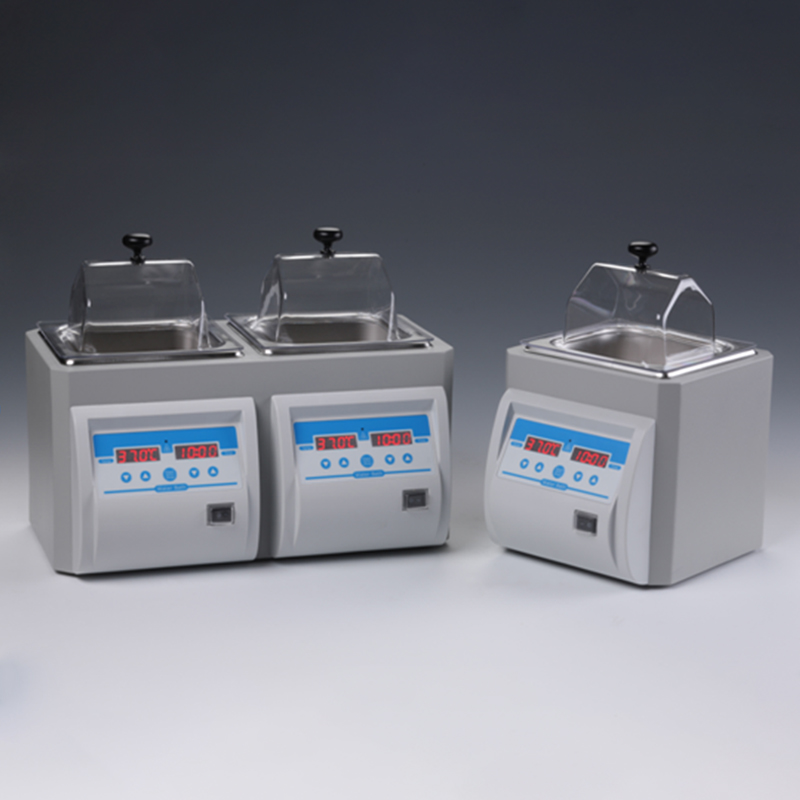

Water Bath
Product Details
Description:
This Thermostat-Controlled Digital Water Bath is a reliable and high-performance laboratory tool designed for precision temperature control in various research and industrial applications. Its advanced microprocessor-based temperature controller ensures consistent and uniform thermal conditions, while the specially engineered anti-condensation gabled lid prevents water droplets from contaminating your samples.
Constructed with an easy-to-clean stainless steel inner chamber, the unit also features a sealed tank structure that effectively prevents water leakage. Enhanced insulation keeps heat within the bath while maintaining a cool exterior surface, improving both efficiency and safety. The integrated water level detection system and overheating protection prevent equipment damage caused by dry running or thermal overload.
Key Features:
Dual Independent LED Displays for real-time temperature and time monitoring.
Microprocessor Temperature Control with high precision and uniform heating.
Stainless Steel Inner Tank with a seamless, sealed design to prevent leakage.
Anti-Condensation Gabled Lid diverts condensation away from samples and speeds up heating.
Efficient Thermal Insulation maintains temperature stability while keeping the housing cool.
Built-in Drain Valve for easy tank cleaning and wastewater disposal.
Dry-Run Protection: Integrated water level sensor and overheating cut-off for safe operation.
Parameters:
Project | WTB2L-1 | WTB2L-2 | WTB2L-3 |
Temp. setting range | 0°C ~ 100°C | 0°C ~ 100°C | 0°C ~ 100°C |
Temp. control range | RT.+5°C ~ 100°C | RT.+5°C ~ 100°C | RT.+5°C ~ 100°C |
Timing range | 1min~99h59min/∞ | 1min~99h59min/∞ | 1min~99h59min/∞ |
Temp. accuracy | ≤±0.3°C @37°C | ≤±0.3°C @37°C | ≤±0.3°C @37°C |
Display accuracy | 0.1°C | 0.1°C | 0.1°C |
Temp. uniformity | ≤±0.3°C @37°C | ≤±0.3°C @37°C | ≤±0.3°C @37°C |
Heating time | ≤ 30min(25°C ~100°C) | ≤ 30min(25°C ~100°C) | ≤ 30min(25°C ~100°C) |
Number of tanks | 1 | 2 | 3 |
Tank capacity | 1*2L | 2*2L | 3*2L |
Working area | 125*100*115mm | 125*100*115mm*2 | 125*100*115mm*3 |
Power | 300W | 600W | 900W |
Voltage | AC220V or 110V/50-60Hz | AC220V or 110V/50-60Hz | AC220V or 110V/50-60Hz |
Fuse | 250V 3A Ф5*20 | 250V 3A Ф5*20 | 250V 3A Ф5*20 |
Dimension(mm) | 206*254*310mm | 397*254*310mm | 588*254*310mm |
Weight(kg) | 2.2kg | 5.5kg | 8.5kg |
