The WSGB-1C is a professional-grade, vacuum-capable laboratory glove box designed for high-precision research requiring an absolute controlled environment. Unlike acrylic models, the WSGB-1C is constructed from heavy-duty SUS304 stainless steel, enabling both the main chamber and the antechamber to reach a maximum vacuum level of -0.1 MPa. This structural integrity allows for rigorous air and moisture removal, ensuring a high-purity inert gas atmosphere for handling highly sensitive O2 and H2O reactive materials.

Featuring a 600*450*420mm main chamber and a dedicated Φ210*260mm cylindrical antechamber, the WSGB-1C is built for durability and precision. It comes equipped with a 10mm thick removable tempered glass window for clear observation, a high-accuracy Germany WIKA brand pressure gauge, and two standard KF25 connectors for optional peripheral integration. The internal perforated power socket and integrated lighting system provide a seamless working environment for complex laboratory procedures.

Key Features

Full Vacuum Capability: Both chambers are engineered to withstand deep vacuum levels down to -0.1 MPa, allowing for the complete evacuation of air and moisture.

SUS304 Stainless Steel Construction: Provides exceptional chemical resistance and structural rigidity for a long service life.

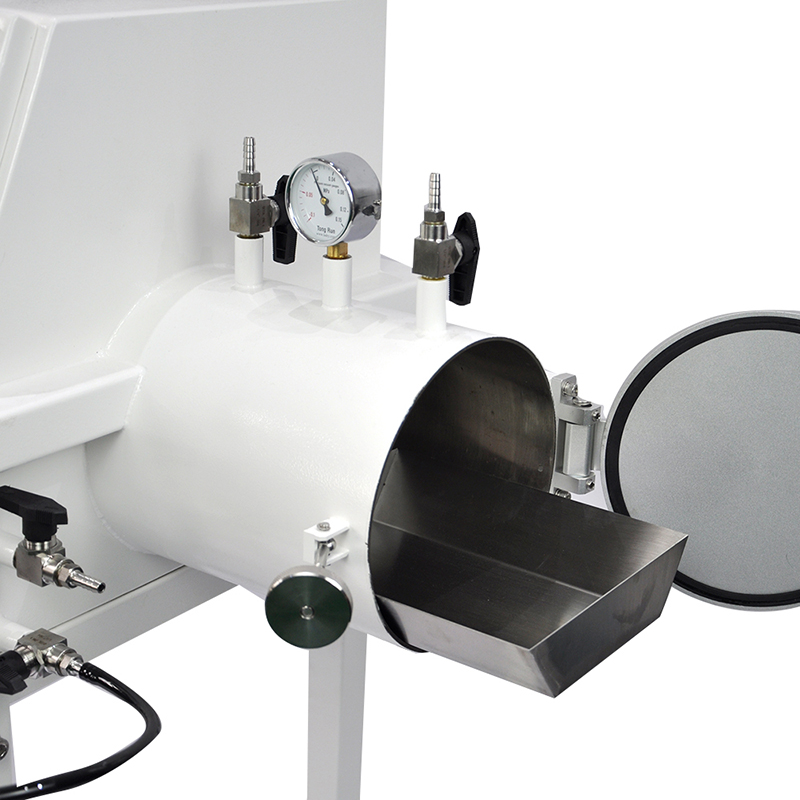

Germany WIKA Pressure Monitoring: Equipped with a world-class precision gauge on the antechamber for reliable and accurate pressure tracking.

Standard KF25 Connectors: Includes two pre-installed KF25 vacuum flanges for easy connection to pumps, sensors, or gas purification systems.

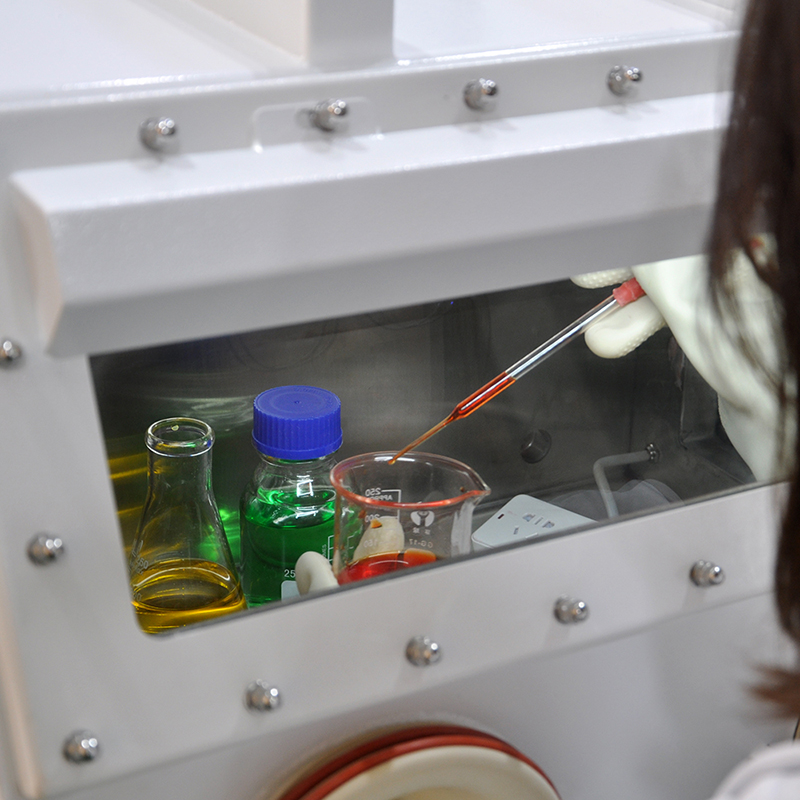

Removable Tempered Glass Window: A 10mm thick high-strength panel offers crystal-clear visibility and is removable for easy equipment installation.

Professional Sealing System: Features 600mm long latex gloves secured with specialized sealing rings for a leak-proof interface.

Integrated Laboratory Utilities: Includes an internal power socket and a front-mounted lighting system for a ready-to-use workspace.
