Sieve Shaker
Product Details

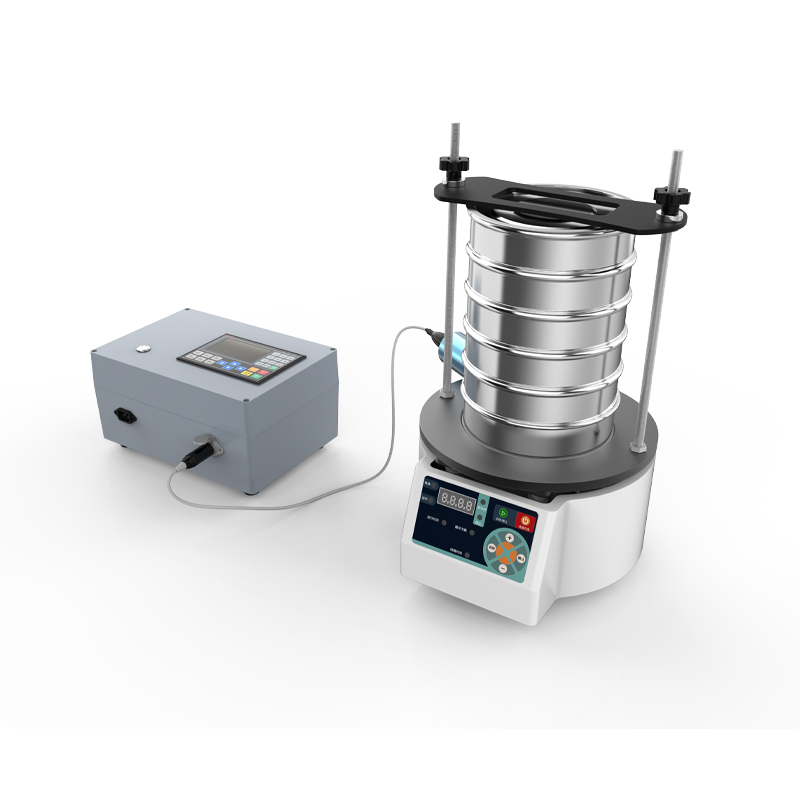

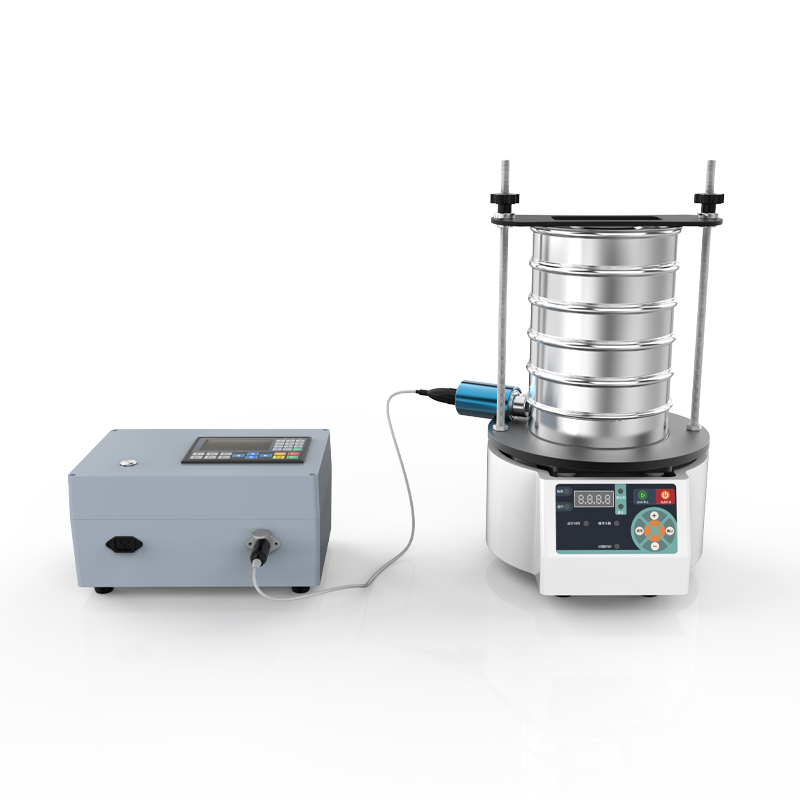

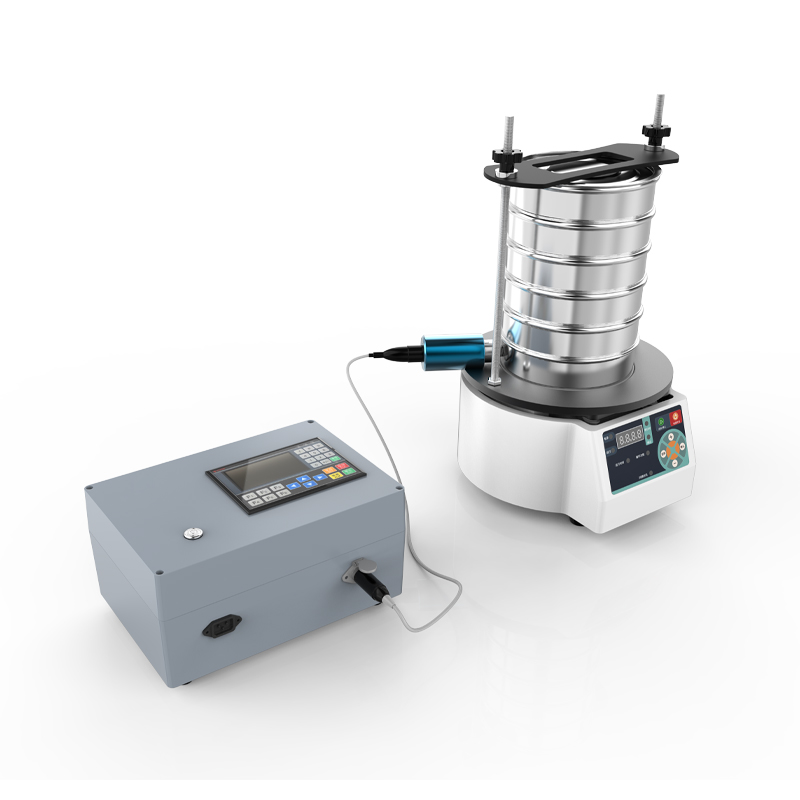

The WAS100 Ultrasonic Vibratory Sieve Shaker is designed for efficient and precise particle separation in industries such as pharmaceuticals, metallurgy, chemicals, mineral processing, and food production. By integrating ultrasonic vibration with mechanical screening, the system significantly enhances sieving efficiency while maintaining stable and quiet operation.
Ultrasonic vibration effectively reduces electrostatic adhesion and agglomeration, ensuring that samples are evenly distributed across the entire sieve surface. The application of ultrasonic-assisted sieving technology minimizes mesh blockage and improves particle pass-through rates, even for fine or difficult-to-screen powders.
The stainless steel cover complies with pharmacopeia standards and prevents powder leakage during operation. With adjustable ultrasonic power, the WAS100 can be optimized for materials of different densities, particle sizes, and structural characteristics, delivering consistent and reliable screening results.
Key Features
Ultrasonic-assisted vibration for high-efficiency sieving
Low noise operation with smooth and stable performance
Reduced mesh blinding and improved material throughput
Electronically controlled amplitude and frequency
Adjustable ultrasonic power for different material properties
Stainless steel cover compliant with pharmaceutical standards
Technical Parameters
Model | WAS100 |
Sample Type | Powder, Granules, Small Lumps, Loose Materials |
Processing Mode | Particle Size Analysis, Separation, Classification |
Max. Load | ≤ 3 kg (depending on material properties) |
Max. No. of Sieves | 1–8 sieves (5 sieves standard, standard test sieves required) |
Max. Amplitude | 3mm |
Max. Frequency | 3000r/min |
Sieving Range | 20μm-125mm |
Voltage/Power | 220V/200W |
Dimensions (L*W *H) | 355*320*580mm |
Batch Load | ≤200g |
Sieve Shaker Weight | 26Kg |
Ultrasonic Generator Frequency | 18-35.5KHz |
Ultrasonic Power | 150W |
Operating Time Range | 1-9999s |
Cycle Range | 1-9999s |
Interval Time Range | 1-9999s |
Max. Sieve Diameter | 200mm |
Main Functions | Timed, Continuous Sieving, Intermittent Sieving |
Sieving Method | Dry Sieving |
