Sample Concentrator
Product Details

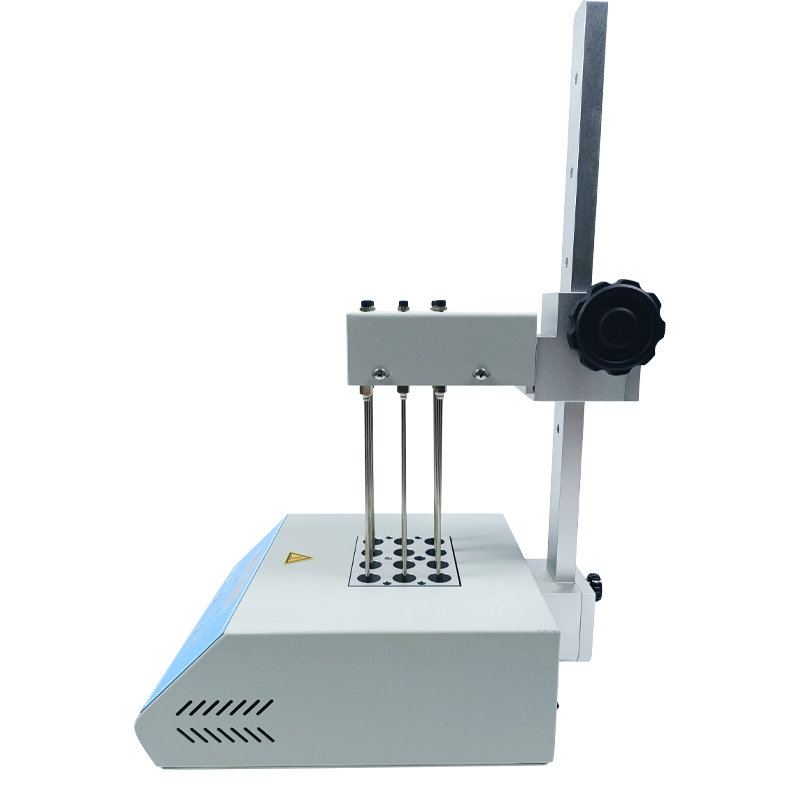

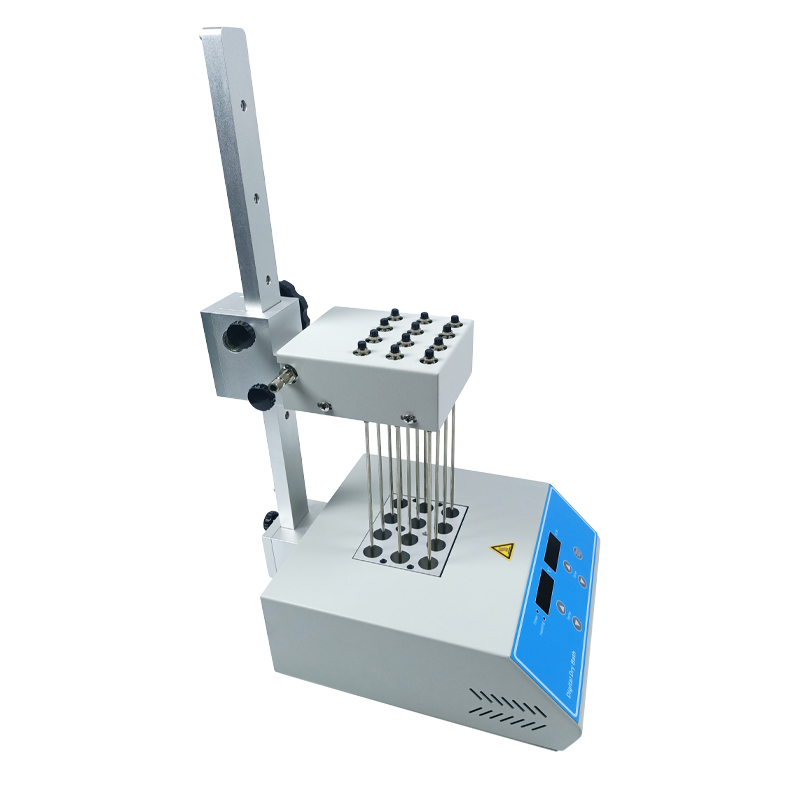

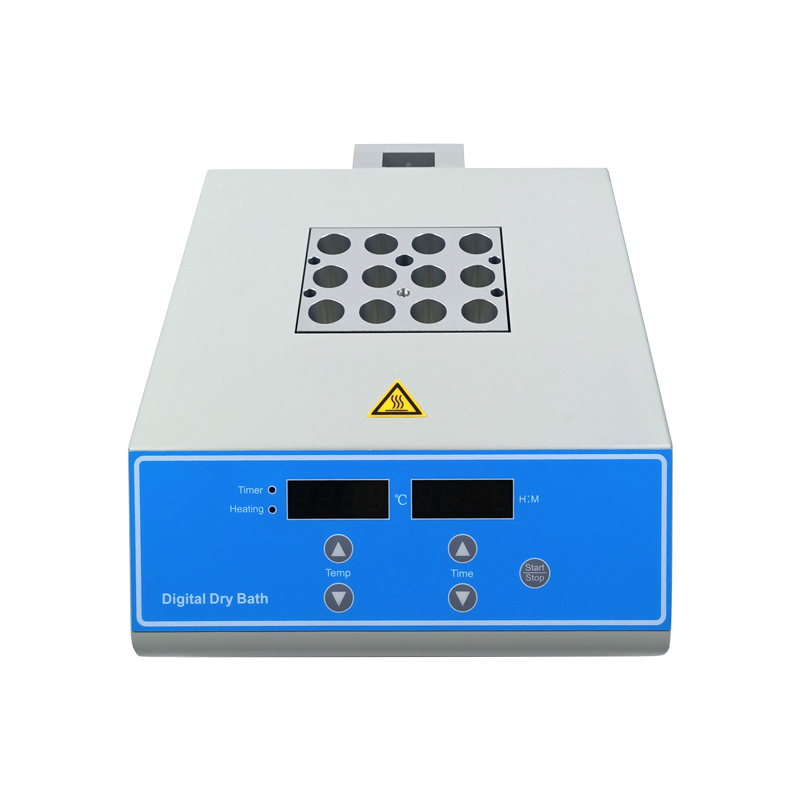

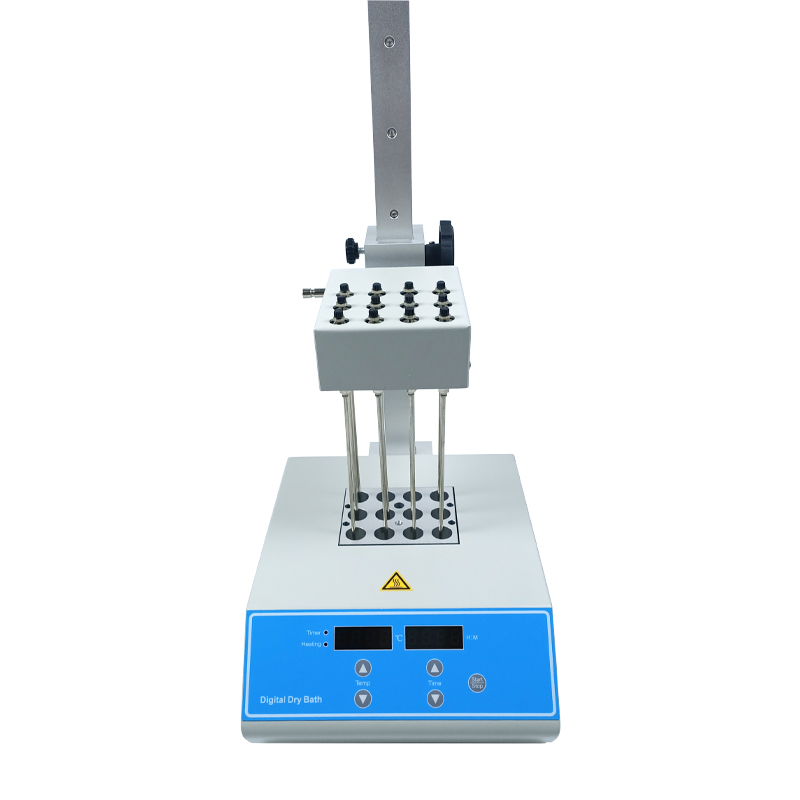

The WSC200-1 Sample Concentrator is a high-efficiency solvent evaporation system equipped with advanced microprocessor and PID fuzzy control technology. Replacing traditional water bath heating, it uses high-purity aluminum as the heat-conducting medium, delivering fast and uniform temperature distribution. Each sample tube is individually positioned in a heated aluminum block and blown with nitrogen gas to accelerate concentration. Independent airflow adjustment ensures optimal evaporation rates for different samples.
Features:
● Precise and stable temperature control over a wide range
● Simultaneous concentration of multiple samples
● Independent nitrogen flow control for each sample position
● Adjustable airflow volume to meet various evaporation needs
● Safe, easy-to-operate design with reliable performance
Applications:
● Residue Analysis: Pesticide residues in vegetables, fruits, cereals, and plant tissues
● Environmental Testing: Sample prep for drinking water, groundwater, and wastewater
● Biological Research: Hormonal assays, LC/GC-MS sample preparation
● Food & Beverage Testing: Analysis of milk, wine, beer, and liquid foods
● Pharmaceutical Testing: Drug discovery, TCM research, and pharmaceutical quality control
Parameters:
Model | WSC200-1 |
Temp range | RT.+5℃-160℃ |
Temp accuracy | ±0.5℃(@40℃) |
Temp accuracy | ±1℃(@120℃) |
Temp uniformity | ±0.5℃ |
Display accuracy | 0.1℃ |
Timing range | 1min-99h59min/∞ |
Heating time | ≤15 min (from 25℃ to 160℃) |
Needle length | 150mm |
Nitrogen flow rate | 15L/min |
Nitrogen pressure | 0.1Mpa |
Block quantity | 1 |
Max power | 300W |
Voltage | AC220V or AC110V, 50/60Hz |
Dimension(mm) | 260*220*475 |
Weight(kg) | 6.0 |
Optional Blocks:
Type | Description | Type | Description |
MD50 | 12*10mm | MD54 | 12*16mm |
MD51 | 12*12mm | MD55 | 12*19mm |
MD52 | 12*13mm | MD56 | 12*20mm |
MD53 | 12*15mm | --- | --- |
