Mixer,Shakers
Product Details

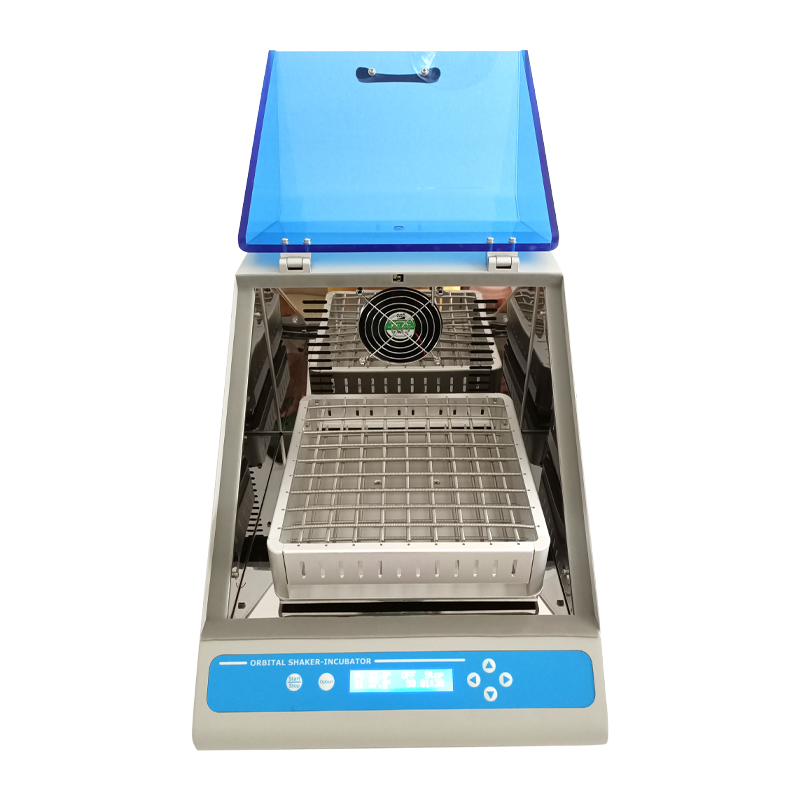

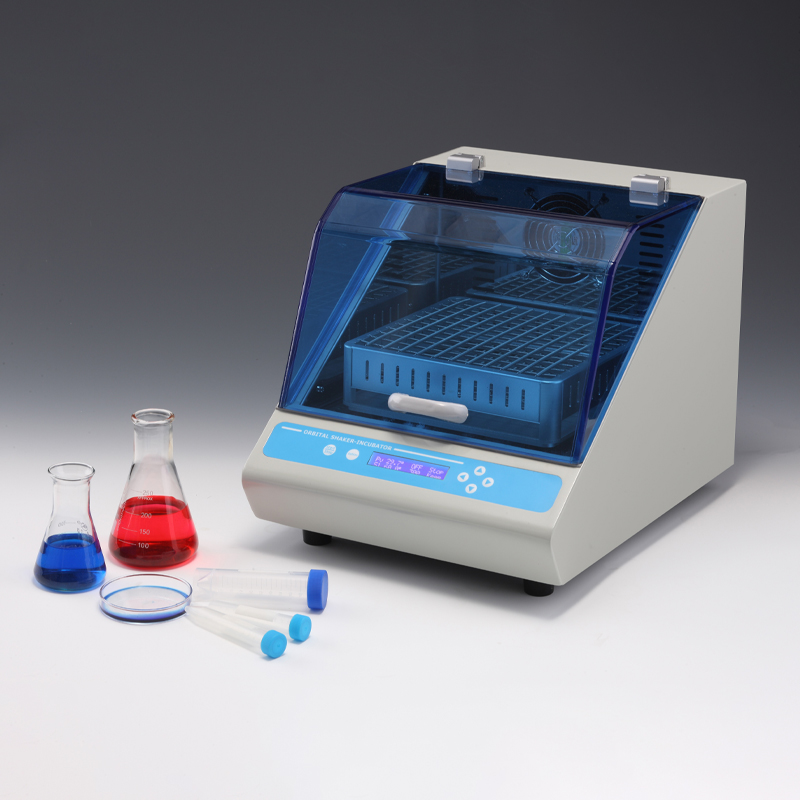

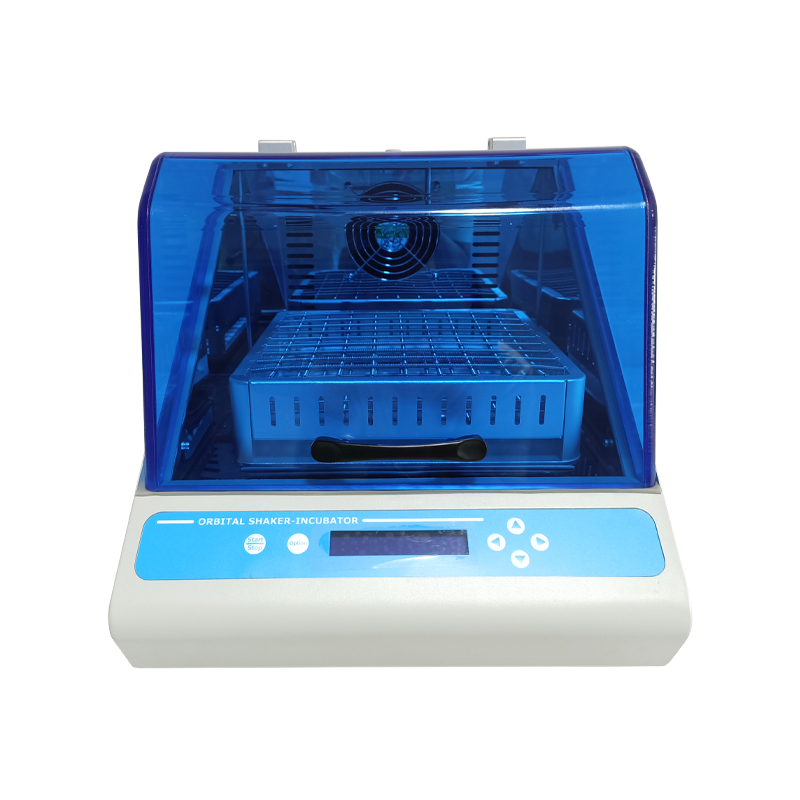

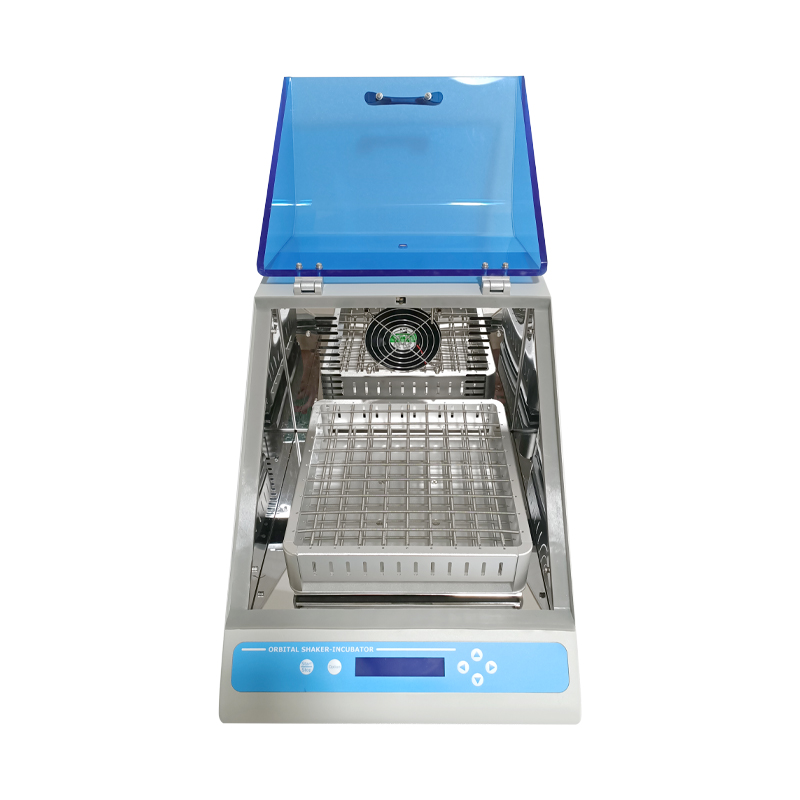

The Orbital Shaker-Incubator is a space-efficient benchtop device designed for simultaneous mixing and incubation of biological liquids. It is ideal for use in molecular biology, microbiology, biochemistry, and pharmaceutical laboratories. Featuring a built-in microprocessor-controlled heating system, it ensures precise temperature regulation throughout the incubation process.
Equipped with seven interchangeable platforms, this unit accommodates a wide variety of sample containers, including Erlenmeyer flasks, petri dishes, microtubes, and ELISA plates. Its quiet, brushless DC motor ensures gentle yet consistent orbital shaking, while safety features such as automatic stop upon lid opening and overheat protection ensure safe operation.
Key Features:
Real-time display of temperature, shaking speed, and time on a clear LCD screen
Quiet and reliable orbital shaking driven by a brushless DC motor
Auto-stop of heating and shaking when the lid is opened
Seven interchangeable platforms support various labware formats
Automatic restart after power restoration
Over-temperature protection and built-in temperature calibration
Compact footprint: 421 mm (D)*320 mm (W)
Parameters:
Model | WTOS20 |
Temperature setting range | 0°C ~60°C |
Temperature control range | RT.+5°C ~60°C |
Time range | 1min ~ 99h59min/∞ |
Temp. accuracy | ≤±0.5°C(@37°C) |
Display accuracy | 0.1°C |
Temp. uniformity | ≤±0.5°C(@37°C) |
Shaking range | 50~300rpm |
Orbit | 20mm |
Platform dimension | 230*230mm |
Internal chamber height | 182mm |
Load capacity | 4.0kg |
Heating time | ≤15min(from 25°C to 60°C) |
Auto resume to run | Yes |
Power | 350W |
Voltage | AC220V/50-60HZ |
Fuse | 250V 3A Ф5*20 |
Dimension(mm) | 421*320*338 |
Weight(kg) | 18.5 |
Optional Platforms
Type | Description |
PF-1 | Platform with clamps for 5*250mL conical flask |
PF-2 | Platform with clamps for 9*100mL conical flask |
PF-3 | Platform with clamps for 10*50mL tube |
PF-4 | Platform with clamps for 18*15mL tube |
PF-5 | Platform with spring holder |
PF-6 | Platform for 4pcs Elisa plates or deep-well plates |
PF-7 | Flat platform for 5pcs petri dishes |
