Mixer,Shakers
Product Details

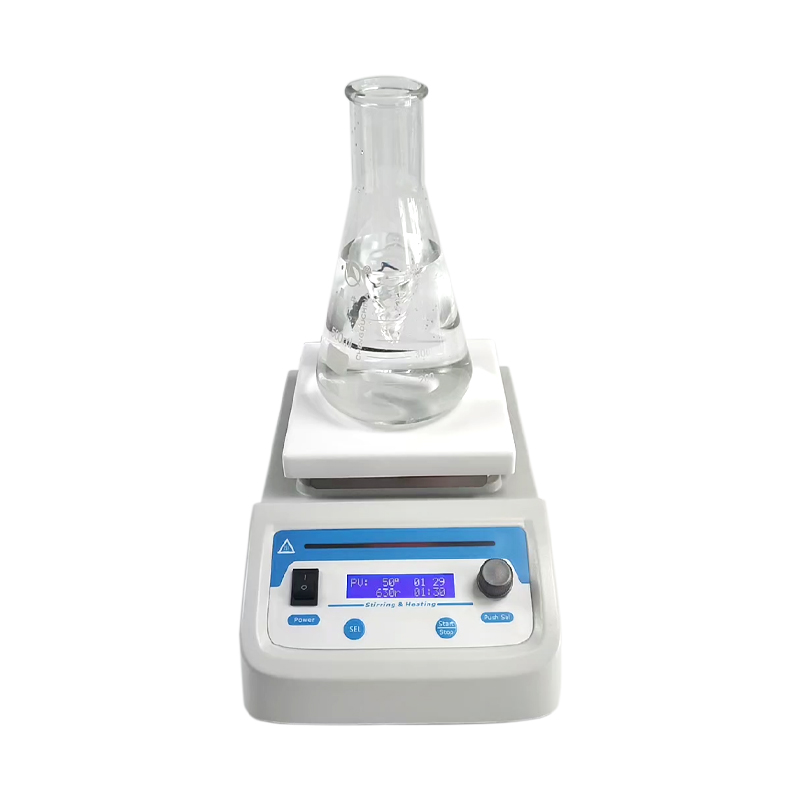

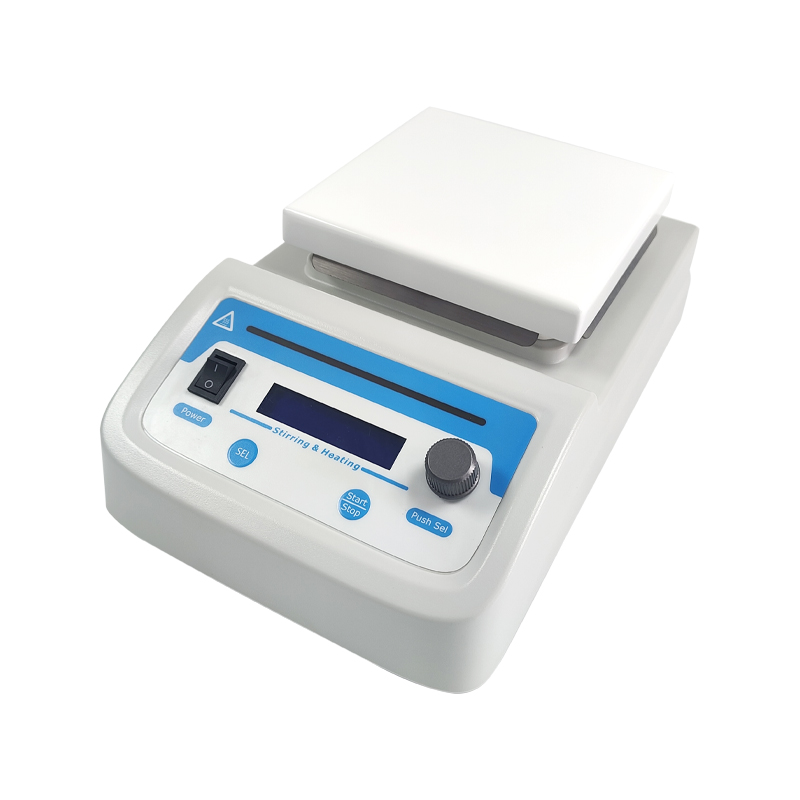

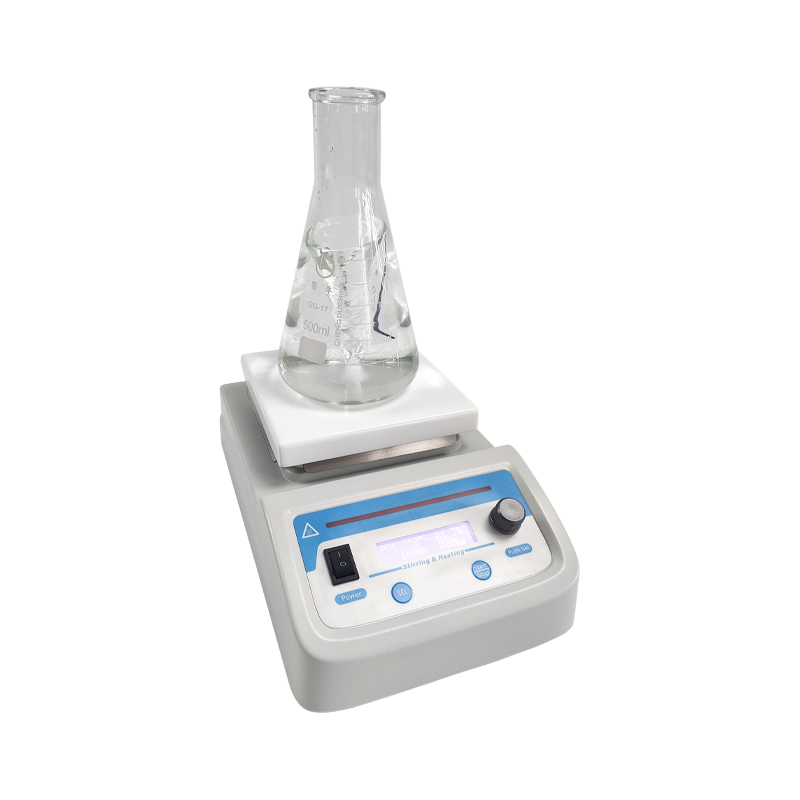

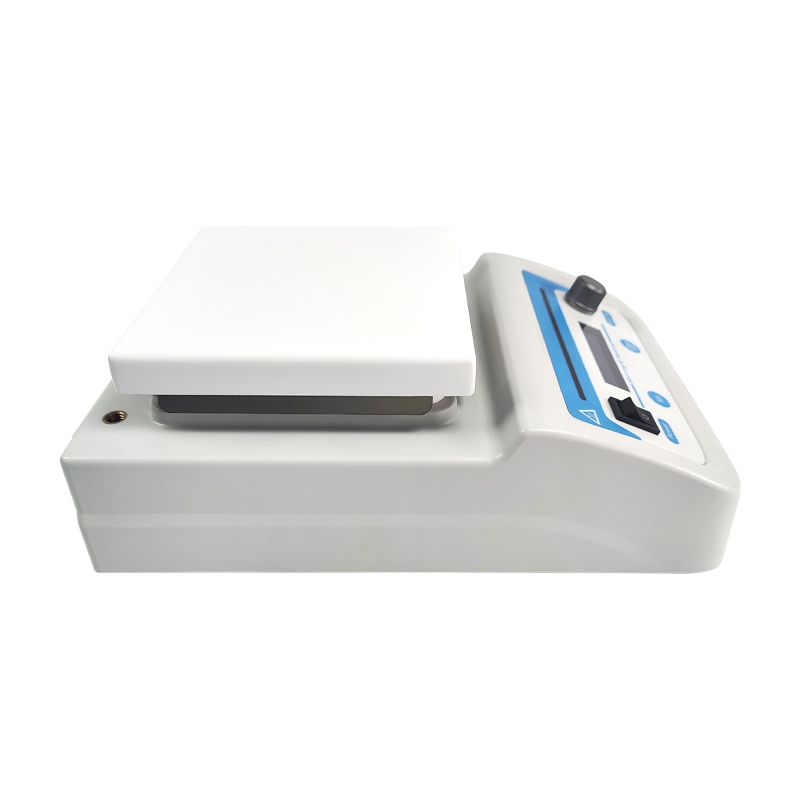

The 350 Series Hotplate, Magnetic Stirrer and Hotplate Stirrer is engineered for reliable and precise sample heating and stirring in laboratories. It features a durable nano-ceramic coated white top plate, offering superior resistance to chemicals, scratches, and corrosion. The space-saving design makes it ideal for busy lab environments, accommodating a wide range of glassware such as beakers, flasks, and bottles, with heating and stirring capacities of up to 3 liters.
Key Features:
Intuitive LCD display for real-time monitoring of speed, temperature, and time.
Advanced heating system reaches up to 350°C with rapid and uniform temperature distribution.
High-performance stainless steel heating plate integrated with precision temperature control components.
External PT1000 sensor compatibility ensures direct and accurate sample temperature regulation.
Overheating warning system: red water light activates when surface temperature exceeds 50°C.
Over-temperature protection to prevent thermal hazards.
Compact and easy-to-operate design, suitable for various laboratory disciplines including microbiology, biotechnology, and clinical diagnostics.
Parameters:
Model | WHS350-H | WHP350 | WHS350 |
Product name | Hotplate Stirrer | Hotplate | Magnetic Stirrer |
Temp. setting range | 0°C~350°C | 0°C~350°C | / |
Temp. control range | RT.+ 5°C~350°C | RT.+ 5°C~350°C | / |
Timing range | 1min~99h59min/∞ | 1min~99h59min/∞ | 1min~99h59min/∞ |
Temp. accuracy | ±1°C (@<100°C), ±1%(@>100°C) | ±1°C (@<100°C), ±1%(@>100°C) | / |
Display accuracy | 1°C | 1°C | / |
Speed range | 200~1600rpm | / | 200~1600rpm |
Max. stir bar | 50mm | / | 50mm |
Max. stir/heating volume(H2O) | 3L | 3L | 3L |
Platform dimension | 142x142mm | 142x142mm | 142x142mm |
Power | 500W | 500W | 15W |
Voltage | AC110V or 220V/50-60Hz | AC110V or 220V/50-60Hz | AC110V or 220V/50-60Hz |
Fuse | 250V 3A Ф5x20 | 250V 3A Ф5x20 | 250V 3A Ф5x20 |
Dimension(mm) | 293x186x107mm | 293x186x107mm | 293x186x92mm |
Weight | 2.6kg | 2.5kg | 2.3kg |
