Mixer,Shakers
Product Details

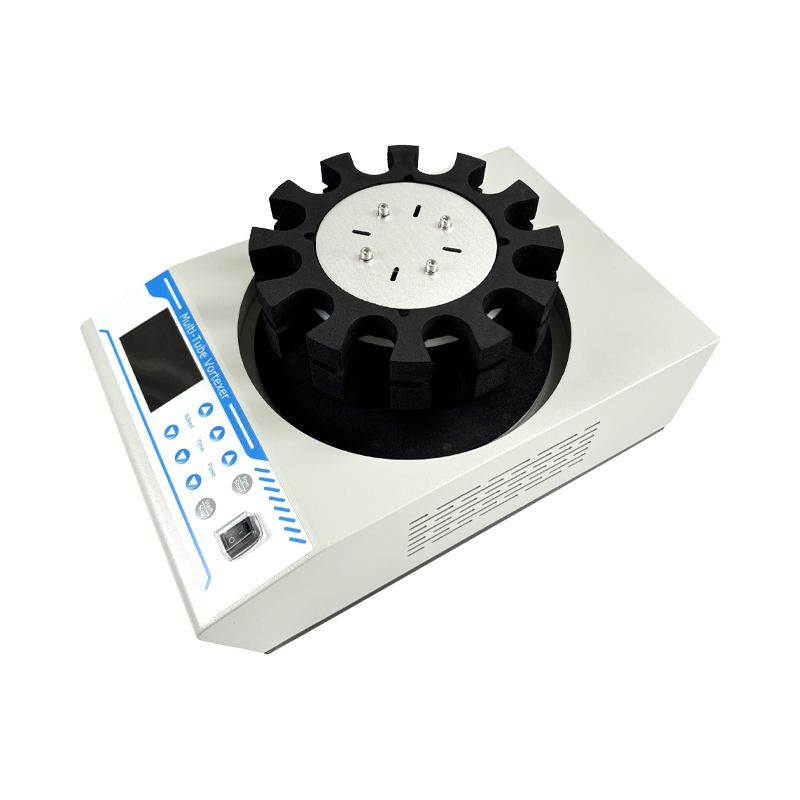

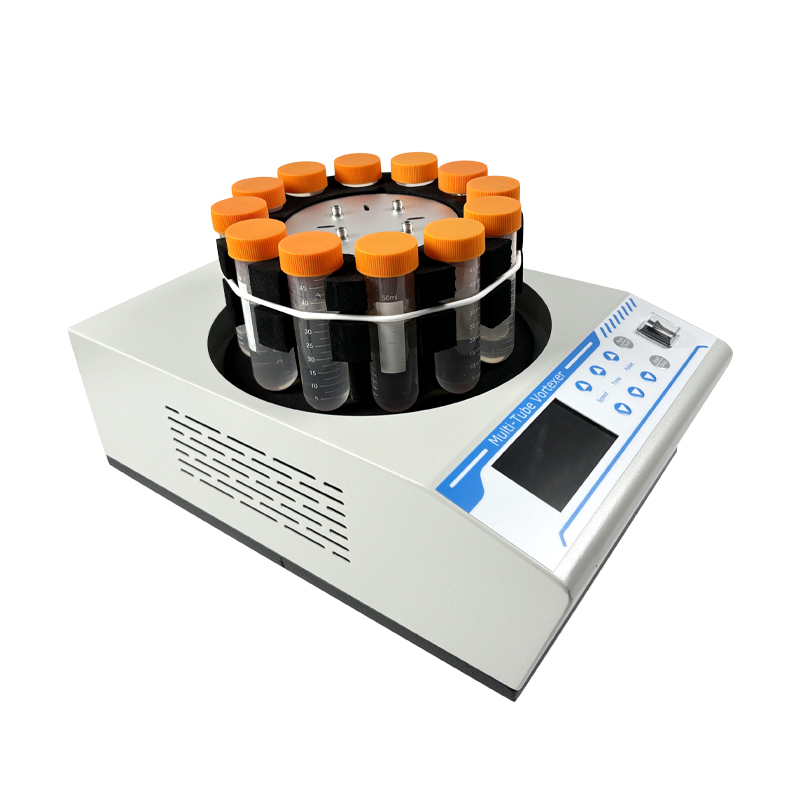

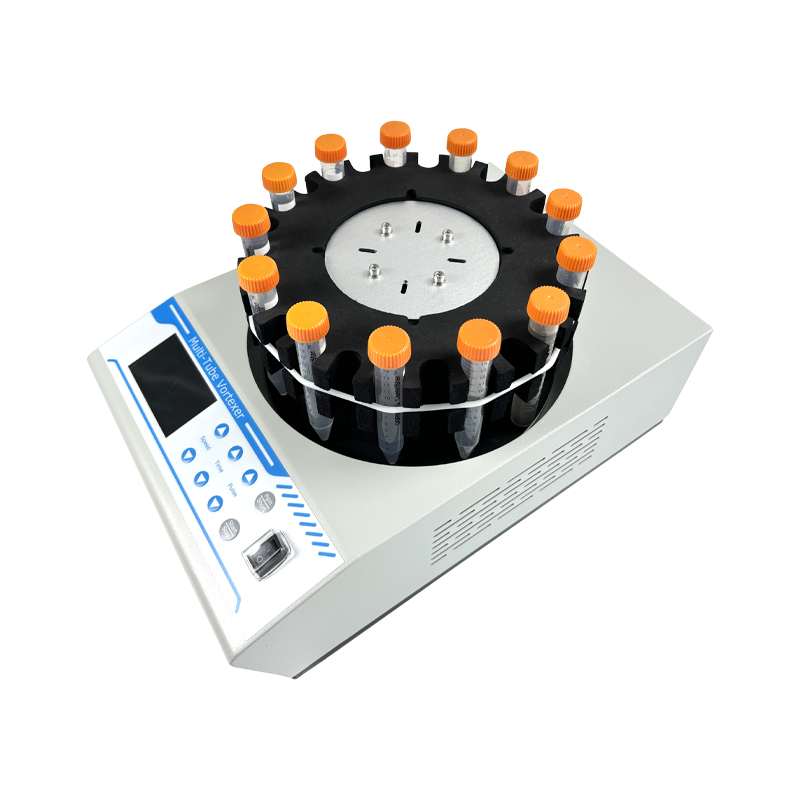

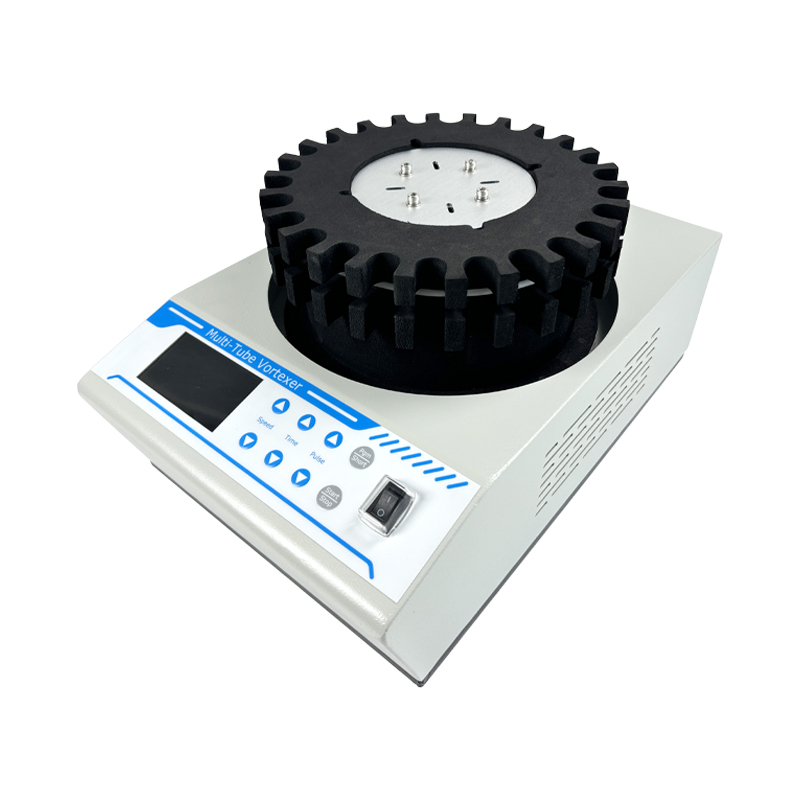

Multi-tube Vortexer is a high-efficiency vortex mixing solution designed to process up to 26 samples simultaneously, significantly improving laboratory productivity. Equipped with a brushless DC motor and advanced microprocessor control, this unit delivers consistent, stable mixing results for pesticide residue detection, veterinary drug screening, mycotoxin analysis, and food additive testing.
Key Features:
Colorful LCD screen shows time and shaking speed at a glance.
Time range from 1 min to 99 hours 59 minutes, with auto-stop alarm.
Built-in pulse mode for interval vortexing, ideal for challenging samples.
Maintenance-free brushless motor for precise control and long-term reliability.
Compatible with various tube volumes and formats, processing up to 26 tubes at once.
Supports multiple modes: timing, continuous, pulsed, and short mixing for versatile lab applications.
Whether you're working in environmental analysis or food safety testing, this multi-tube vortex mixer offers unparalleled convenience, power, and performance.
Parameters
Project | Parameter | |||
Speed range | 500~3000rpm | |||
Orbit | 3mm | |||
Time setting range | 1min~99h59min/∞ | |||
Pulse function | Yes | |||
Timing set for pulse | 2s~9min59s | |||
Interval timing between pulse | 1s~9min59s | |||
Times for pulse | 1~99times | |||
Pulse mode setting during running | Yes | |||
Short mix | Yes | |||
Max load | 4.5kg | |||
Power supply | 150W | |||
Voltage | AC100~240V/50-60Hz | |||
Fuse | 250V 3A Ф5x20 | |||
Capacity | Type | Tube quantity | Tube diameter | Tube max. length |
MS400-T16 | 26 | ￠10~￠16mm | 160mm | |
MS400-T32 | 12 | ￠16~￠32mm | 120mm | |
Dimension(mm) | 380x250x210 | |||
Weight(kg) | 14.3 | |||
