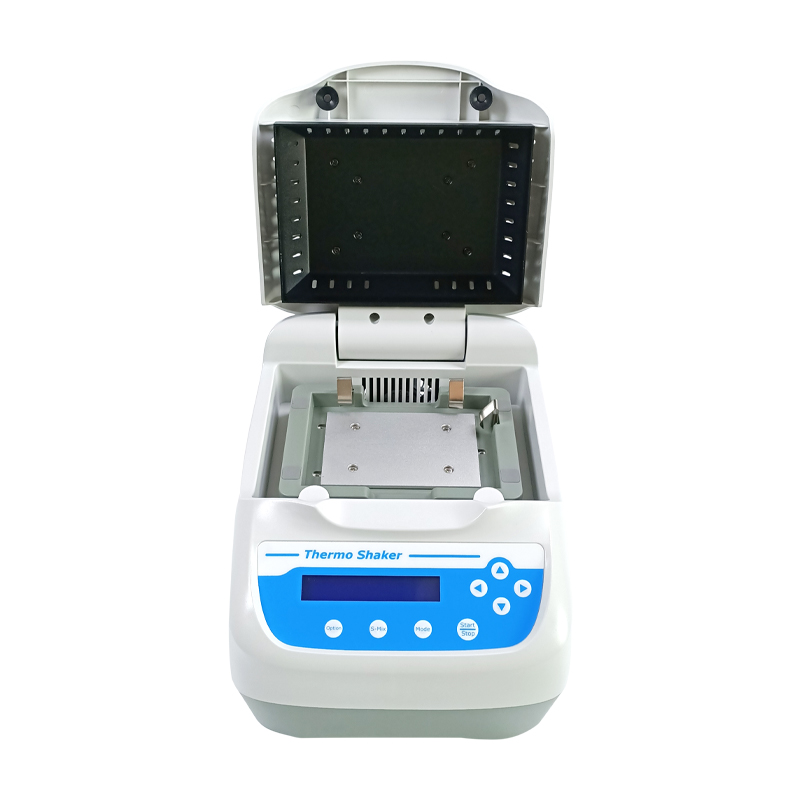

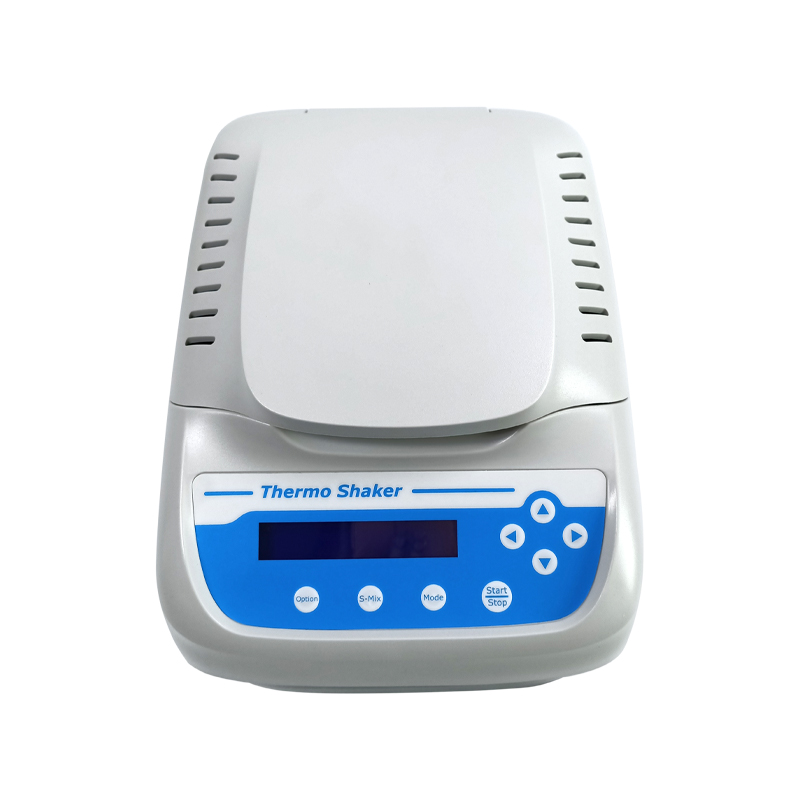

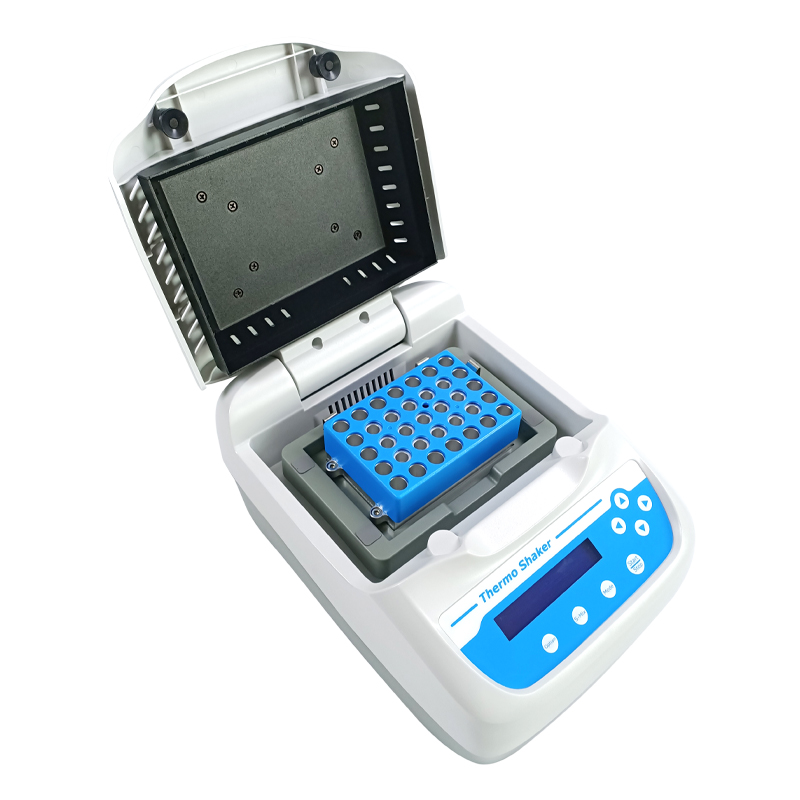

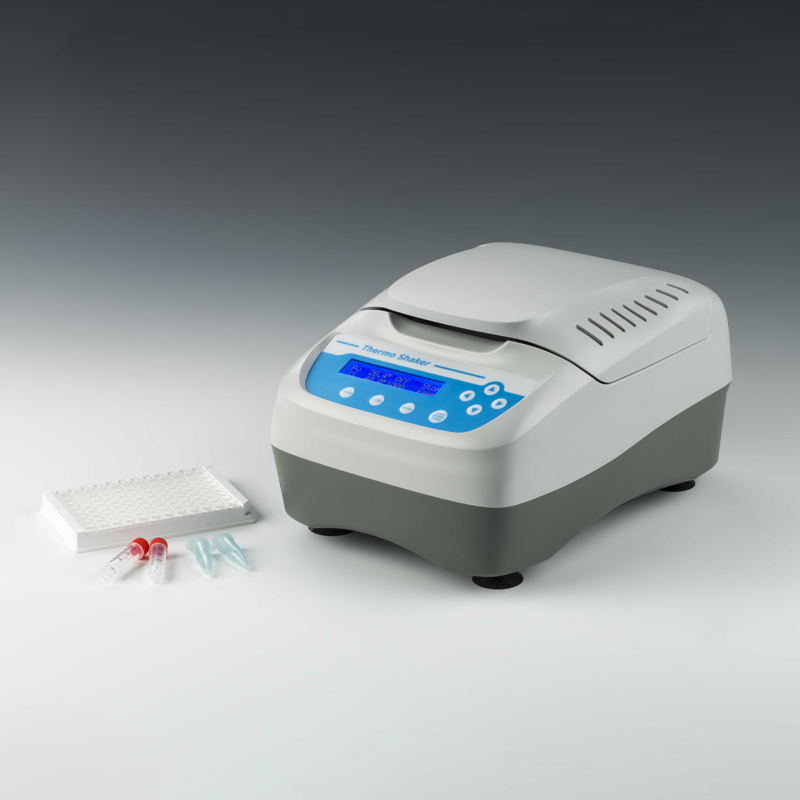

WTPS1000 Thermo Shaker (with heating lid)
WTPS1000 Thermo Shaker is a high-performance thermostatic shaker equipped with a heating lid and driven by a brushless DC motor. It features intelligent PID temperature control, ensuring precise temperature regulation and minimized temperature fluctuations

Product Details

WTPS1000 Thermo Shaker is a high-performance thermostatic shaker equipped with a heating lid and driven by a brushless DC motor. It features intelligent PID temperature control, ensuring precise temperature regulation and minimized temperature fluctuations. The independently controlled heating lid prevents sample evaporation and contamination. WTPS1000 is ideal for applications such as sample incubation, enzymatic reactions, mixing, and thermal preservation.

WTPS10004

Features:

LCD display for easy setup and operation

Accurate and stable temperature control

Independently controlled heating lid prevents evaporation and cross-contamination

Built-in fan for rapid cooling of samples

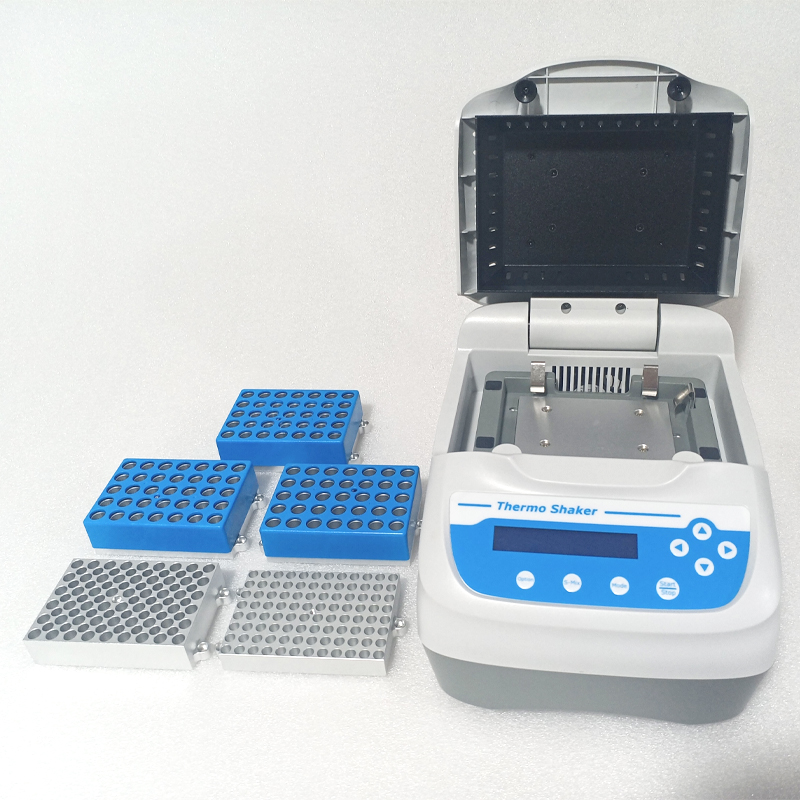

Interchangeable blocks compatible with standard lab tubes and microplates

Custom block options available upon request

Brushless DC motor: quiet, durable, and maintenance-free

Automatic preheating function

Power-failure recovery: auto resume after power is restored

Automatic start-up function

Short-duration mixing function

Internal temperature calibration capability

Overheat protection system for enhanced operational safety

WTPS10003


Applications:

Storing enzymes or DNA libraries at your work station.

Transporting samples from the field at exactly the right temperature.

Heating samples in the field.

Enzyme reactions and deactivations.

PCR sample preparation.

Technical Specifications

Model

WTPS1000

Temp. setting range

0℃~105℃

Temp. control range

RT.+5℃~105℃

Time range

1sec~99min59sec/1min~99h59min/∞

Temp accuracy

≤±0.3℃

Display accuracy

0.1℃

Temp uniformity

≤±0.3℃

Speed range

200~3000rpm

Orbit

2mm

Heating time

≤10min(from 25℃ to 100℃)

Fan cooling time

≤12min(from 100℃ to 37℃)

Heating lid temp. setting range

OFF/AUTO/0℃~110℃

Heating lid temp. control range

RT.+5℃~110℃

Heating lid heating time

≤10min(from 25℃ to 110℃)

Heating lid independent temp. control function

Yes

Auto fan function

Yes

Program number

10programs(S0~S9)

Multi point running

Yes(Max 5points)

Multi cycle

Yes(Max 99times)

Auto heating

Yes

Auto constant temperature at the end of run

Yes

Heating lid mode

Automatic / Manual

Auto running

Yes

Auto resume to run

Yes

Delay timing function

Yes

Power supply

335W

Voltage

AC220V or AC110V/50-60Hz

Fuse

250V 3A  Ф5×20

Dimension(mm)

296*212*164

Weight(kg)

6.9

Optional blocks

Type

Capacity

Max Speed

MD30

96*0.2mL PCR Plate

2500rpm

MD31

54*0.5mL centrifuge tube

2500rpm

MD32

35*1.5mL centrifuge tube

2500rpm

MD33

35*2.0mL centrifuge tube

2500rpm

MD34

20*1.5mL+15*0.5mL

2500rpm

with out block

Elisa plate/Deep-well plate/ Tissue culture plate

3000rpm
