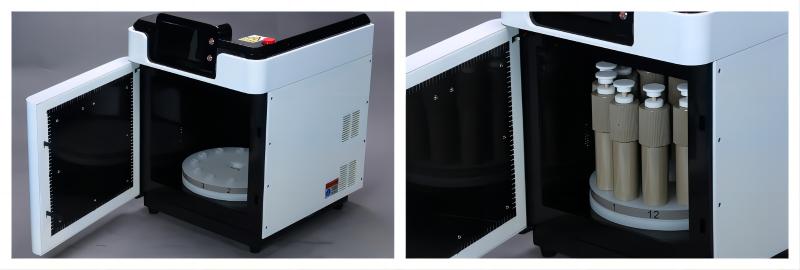

Microwave Digestion
Product Details
Features
•The whole machine is designed with a 316L stainless steel structure PFA to coating awoid impact, explosion, and corrosion.
•Explosion-proof sensors are installed on the furnace chamber's fo ensure safety
•The emergency stop button located outside can quickly and effectively cut off the power supply to prevent accidents.
•The machine is equipped with a dual independent chain sensing device that cuts off power when the door is open and stops microwave output when the door is not completely closed.
•The digestion tank has a self-recovering double-pressure relief structure to prevent sample loss due to overpressure.
Technical Specifications
| Model | WMD600 |
| Vessel Quantity | 6 |
| Temperature Monitoring System | Temperature Monitoring: Contactless IR Sensor; Scan monitoring for each vessel Temperature Controlling Range: 50~400℃; Temperature Accuracy: +0.1C; Display Accuracy: ±0.1℃ |
| Pressure Monitoring System | Pressure monitoring: Contactless Sensor; Scan monitoring for each vessel Pressure Controlling Range: 0~15MPaPressure Accuracy: ±0.01MPa Display Accuracy: ±0.01Mpa |
| Vessel Volume | 100ml |
| Sample Vessel Material | Imported TFM |
| Protection Vessel Material | Peek+Glass Fiber |
| Display | 7 inch Touch Screen |
| Rotation | 360°Continuous Rotating |
| Microwave Tank | 316L Stainless Steel tank With Corrosion-Proof Coating |
| Microwave Power | 0-1000W(Adjustable) |
| Microwave Leakage | <5mw/cm2 |
| Air Exhaust | High Power Corrosion-Proof Air Blower |
| Power | AC220V±10%, 10A, 50/60Hz |
| Dimension | 490*560*630mm(L*W*H) |
| Weight | 47KG |
