The WAGB-4B is the flagship model of our laboratory acrylic glove box series, engineered for professional research requiring both an expansive workspace and high-purity atmosphere control. It combines a generous 900mm wide main chamber with a dedicated vacuum-capable antechamber (airlock), making it the ideal choice for complex experimental setups that involve frequent sample transfers.

Constructed from premium 6mm thick transparent PMMA (acrylic), the WAGB-4B provides 360° unobstructed visibility while maintaining a clean, low-moisture, and low-oxygen environment. The integrated airlock system allows users to purge or vacuum samples (up to -0.1 MPa) before introducing them to the main workspace, ensuring the internal inert atmosphere remains pristine. Equipped with a Germany WIKA brand pressure gauge and high-quality SUS304 ball valves, the WAGB-4B offers the functionality of a professional vacuum system at a much more accessible price point than traditional stainless steel designs.

Key Features

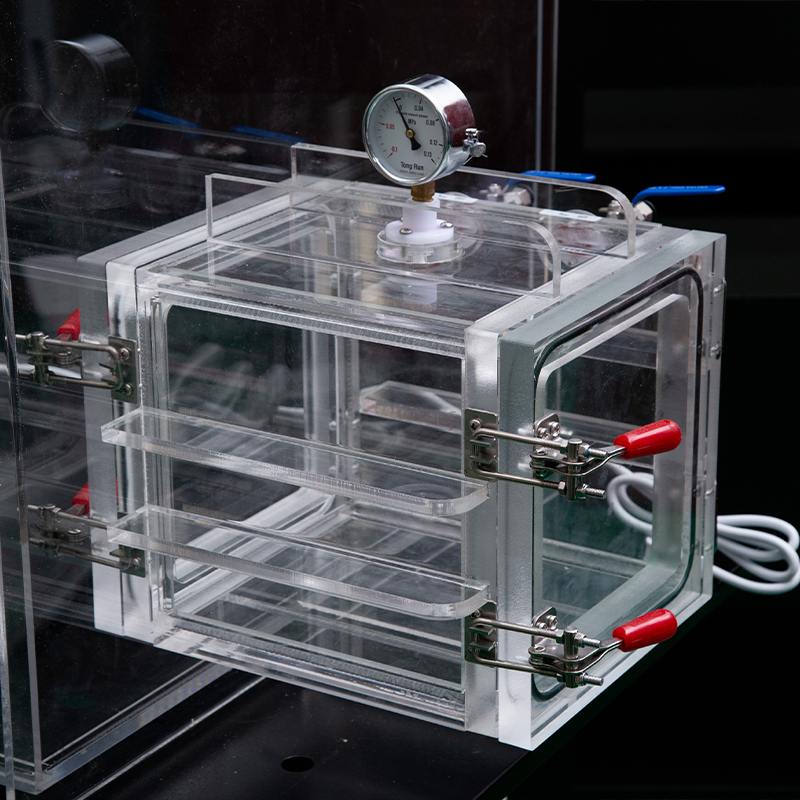

Integrated Vacuum Airlock: The 240*240*240mm antechamber supports vacuum levels down to -0.1 MPa, allowing for contamination-free transfer of materials and equipment.

Extra-Wide 900mm Workspace: Provides a massive lateral workspace (900*500*500mm), accommodating large instruments, multiple stirrers, or multi-stage experimental flows.

Germany WIKA Pressure Gauge: Features a world-renowned WIKA precision gauge on the antechamber for reliable monitoring of vacuum and purging cycles.

Full-View Transparency: High-clarity, 6mm thick acrylic panels allow for perfect observation of all operations from any angle, enhancing safety and precision.

Independent Quad-Valve Control: Equipped with 4 ball valves (including two SUS304 valves on the main chamber) for independent inert gas management of both chambers.

Built-in Power Access: An integrated internal power socket allows researchers to run electrical equipment directly within the controlled environment.

Ergonomic Handling: Complemented by a pair of 600mm long rubber gloves and standard 140mm ports for comfortable, extended use.

Stable Atmosphere Protection: Designed to maintain a stable operating pressure of ±1000 Pa, perfect for handling moisture-sensitive or air-reactive chemicals.

Technical Specifications
