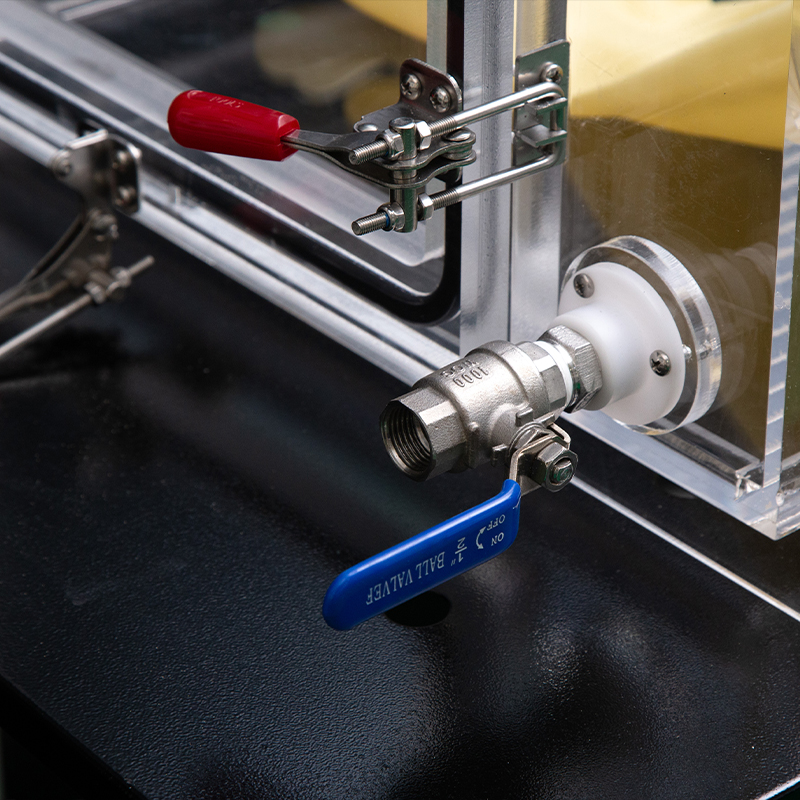

Acrylic Glove Box
Product Details
The WAGB-3B is an upgraded acrylic glove box featuring a dedicated vacuum-capable antechamber (airlock). This allows for sample transfer without compromising the main chamber's inert atmosphere. Constructed from 6mm premium PMMA, it offers a spacious 800*550*600mm workspace with 360° visibility. Equipped with a Germany WIKA brand pressure gauge and four ball valves, it provides professional control for air-sensitive research at a cost-effective price point.
Key Features
Vacuum Antechamber: Supports vacuum levels down to -0.1 MPa for contamination-free material transfer.
Germany WIKA Pressure Gauge: High-precision monitoring for the antechamber.
Dual-Zone Gas Control: 4 ball valves in total for independent management of main and airlock chambers.
Full Transparency: 6mm thick optical-grade acrylic for unobstructed viewing.
Internal Power Access: Built-in socket for powering instruments inside the controlled environment.
SUS304 Components: Stainless steel valves on the main chamber for enhanced durability.
Ergonomic Operation: Includes 600mm rubber gloves and standard 140mm ports.
Technical parameters
Model | WAGB-3B |
Materials | Acrylic (PMMA) |
Main chamber Size (mm) | 800W*550D*600H |
Material thickness(mm) | 6 |
Main Chamber Pressure | ±1000Pa |
Antechamber Size (mm) | 240W*240D*240H |
Antechamber Pressure | Max. Vacuum Level: -0.1MPa |
Door Size (mm) | Manually operated door 300H*300D |
Gloves | 1 pairs of rubber gloves 600mm long |
Power Pocket | 1 Power socket inside main chamber |
Glove Port size | 140mm |
Valves on Main Chamber | 2 Ball Valves, diameter 8mm SUS304 |
Valves on Airlock Chamber | 2 Ball Valves, diameter 8mm |
Pressure Gauge | 1 Pressure Gauge on Antechamber, Germany WIKA brand |
