Acrylic Glove Box
Product Details

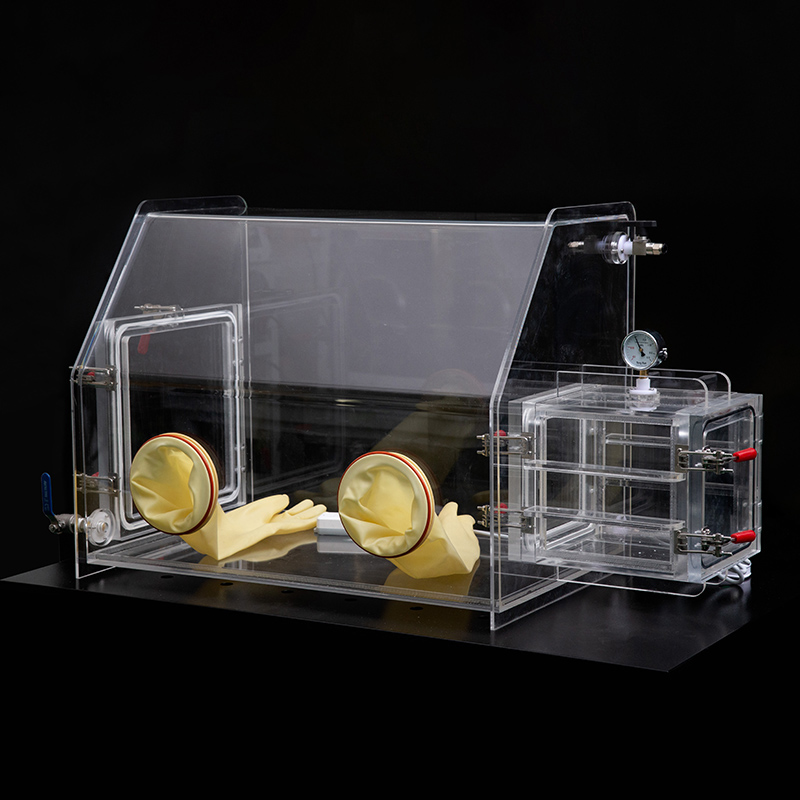

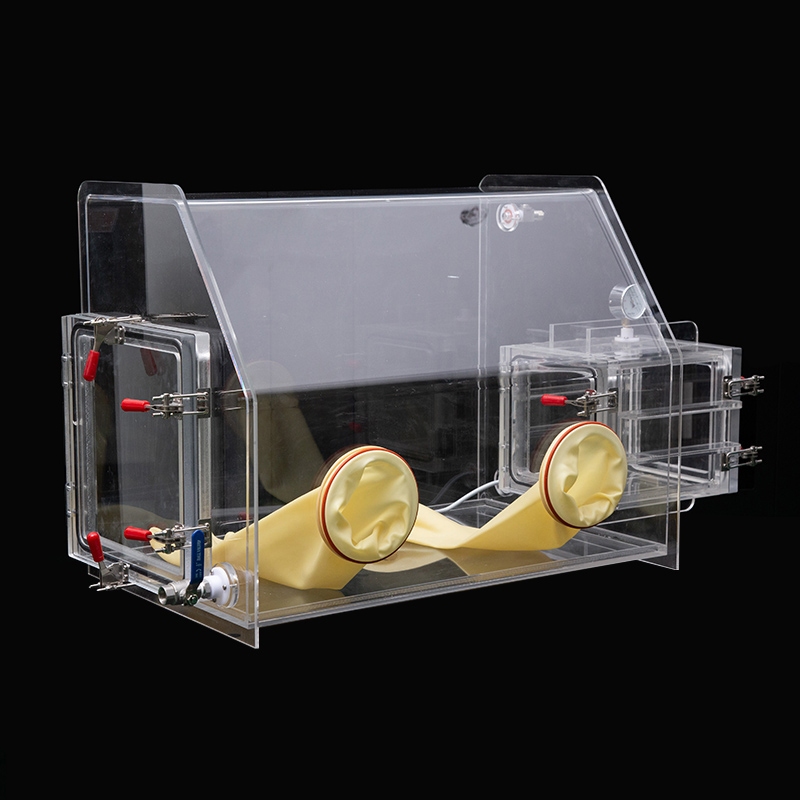

The WAGB-2B acrylic glove box is a sealed container designed for handling materials under a controlled atmosphere. By pumping inert gas into the chamber, the glove box creates a clean, low-moisture, and low-oxygen environment, making it ideal for working with moisture-sensitive materials and reactive chemicals. Offering a versatile, cost-effective solution, acrylic glove boxes serve as an excellent alternative to traditional stainless steel designs.
Key Features
Transparent Acrylic Main Chamber — Available in 6mm or 10mm thickness, providing excellent chemical resistance and clear visibility during operation.
Dead-Space-Free Viewing Window — Pure transparent acrylic board with no dead zones, ensuring unobstructed observation of the entire workspace.
SUS304 Stainless Steel Valves — High-quality gas inlet and outlet ports allow precise inert gas purging to maintain a clean, low-moisture, low-oxygen atmosphere.
Integrated Power Supply — Perforated power socket built directly into the main chamber for convenient connection of internal equipment.
Industrial-Grade Latex Gloves — Corrosion-resistant gloves securely fixed with sealing rings, ensuring both operator safety and environmental integrity.
Customizable Interfaces — Additional ports can be reserved upon request for filters, KF40 flanges, and other accessories to meet your specific workflow needs.
Technical parameters
Model | AGB-2B |
Materials | Acrylic (PMMA) |
Main chamber Size (mm) | 700W450D550H |
Material thickness (mm) | 6 mm |
Main Chamber Pressure | ±1000Pa |

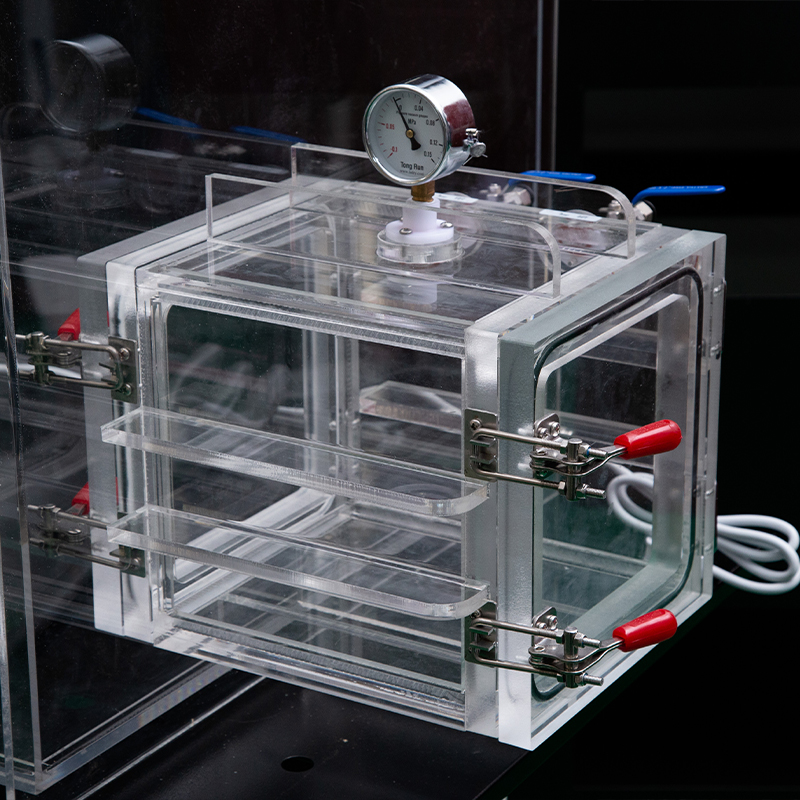

Antechamber Size (mm) | 240W240D240H |
Antechamber Pressure | Max. Vacuum Level: -0.1MPa |
Door Size (mm) | Manually operated door 300H*300D |
Gloves | 1 pair of rubber gloves 600mm long |
Power Pocket | 1 Power socket inside main chamber |
Glove Port size | 140mm |
Valves on Main Chamber | 2 Ball Valves, diameter 8mm SUS304 |
Valves on Airlock Chamber | 2 Ball Valves, diameter 8mm |
Pressure Gauge | 1 Pressure Gauge on Antechamber, Germany WIKA brand |
