Autoclave
Product Details

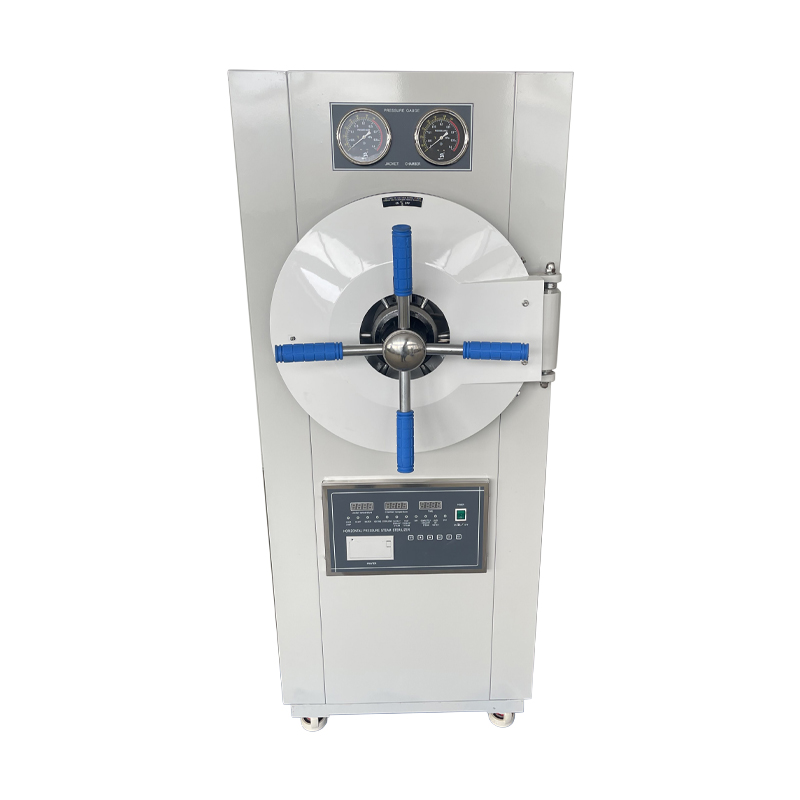

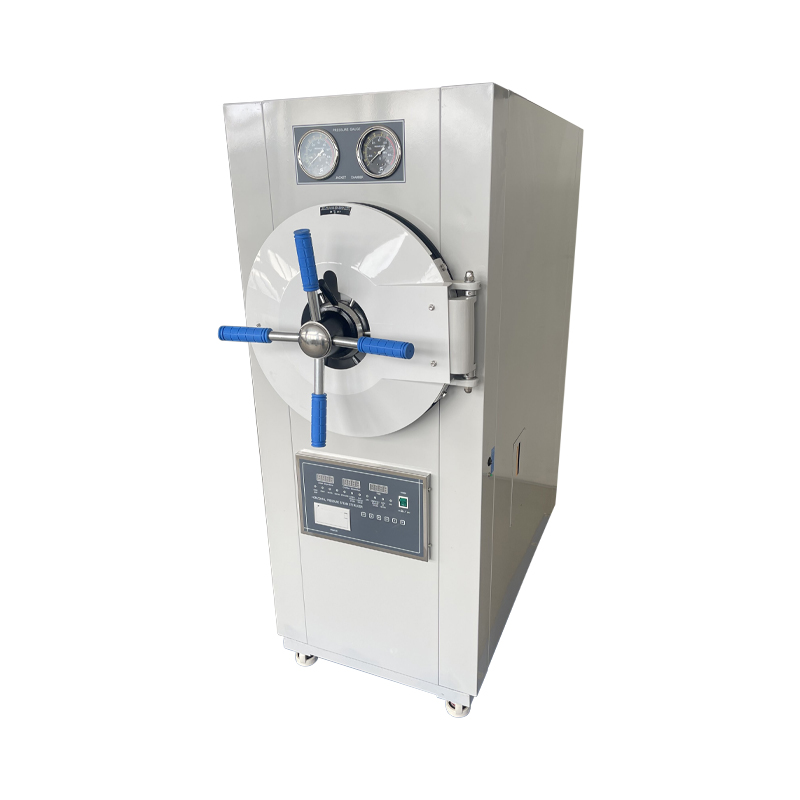

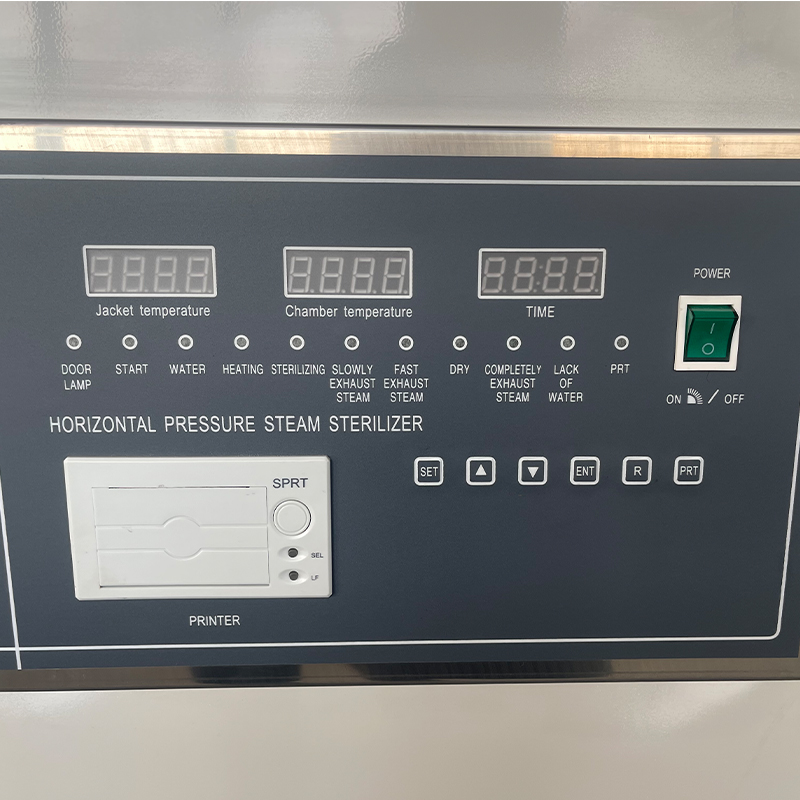

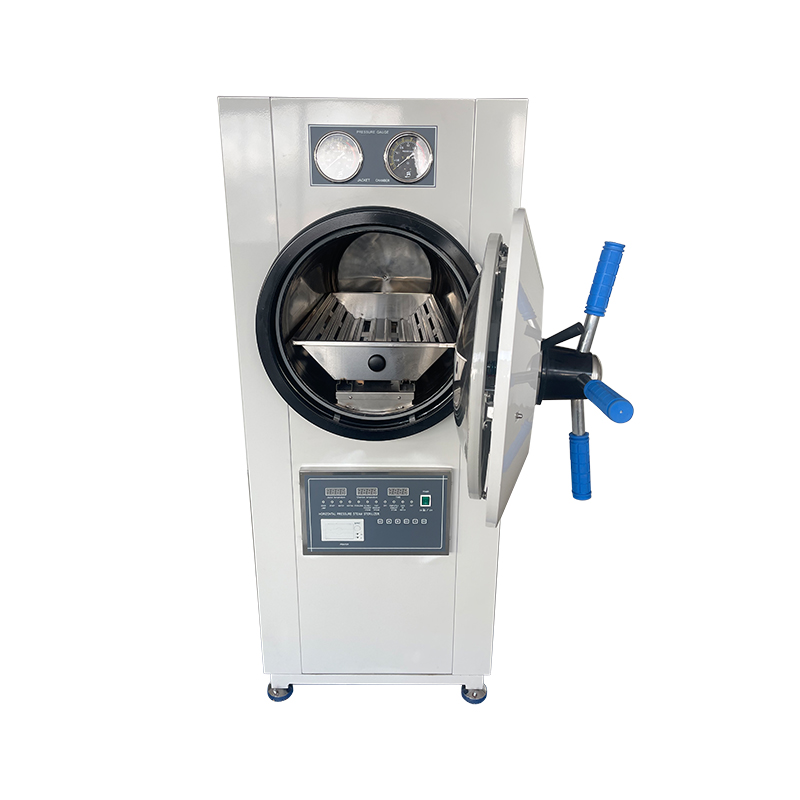

The Welso WYDB Series Horizontal Cylindrical Pressure Steam Autoclave is designed with a microcomputer control system that ensures the sterilizing process is fully automated and easy to operate. Featuring a built-in drying function, it is particularly suitable for medical dressings and laboratory applications. Safety mechanisms include an interlock that prevents the door from opening until pressure drops to 0.027 MPa, an automatic safety valve release above 0.24 MPa, and power-off protection in case of water shortage. With a stainless-steel chamber, the unit provides durability, reliability, and consistent sterilization performance.
Features:
Automated sterilizing cycle, user-friendly operation.
Drying function for medical and laboratory use.
Over-pressure and over-temperature protection.
Safety interlock prevents premature door opening.
Automatic steam exhaust via safety valve above 0.24 MPa.
Power cut-off and alarm in case of water shortage.

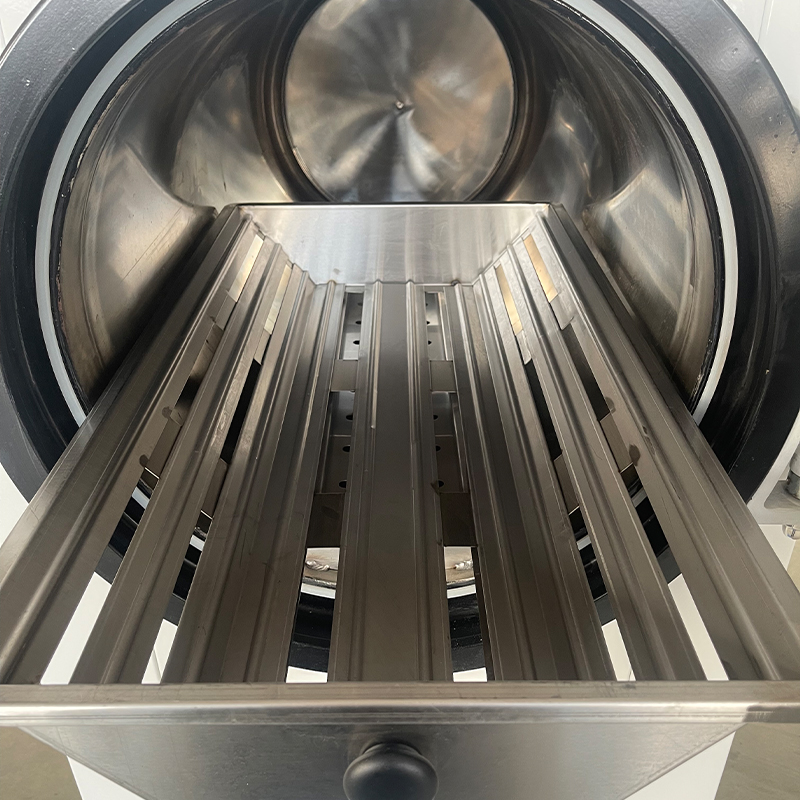

Stainless steel chamber for corrosion resistance.
Technical data：
Technical Data | WYDB150 | WYDB200 | WYDB280 |
Sterilizing Chamber Volume | 150L(φ440×1000mm) | 200L(φ515×1000mm) | 280L(φ600×1000mm) |
Working Pressure | 0.22 MPa | ||
Working Temperature | 134℃ | ||
Adjustment Of Temperature | 105℃ - 134℃ | ||
Time Of Sterilization | 0-99 min | ||
Time Of Drying | 0-99 min | ||
Heat Average | ≤± 2℃ | ||
Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz |
Dimension | 1400×650×1590 | 1400×750×1700 | 1540×850×1790 |
Transport Dimension | 1560×860×1820 | 1560×910×1880 | 1680×1060×2050 |
G.w/N.w | 422/368 KG | 469/404 KG | 577/492 KG |
