Autoclave
Product Details

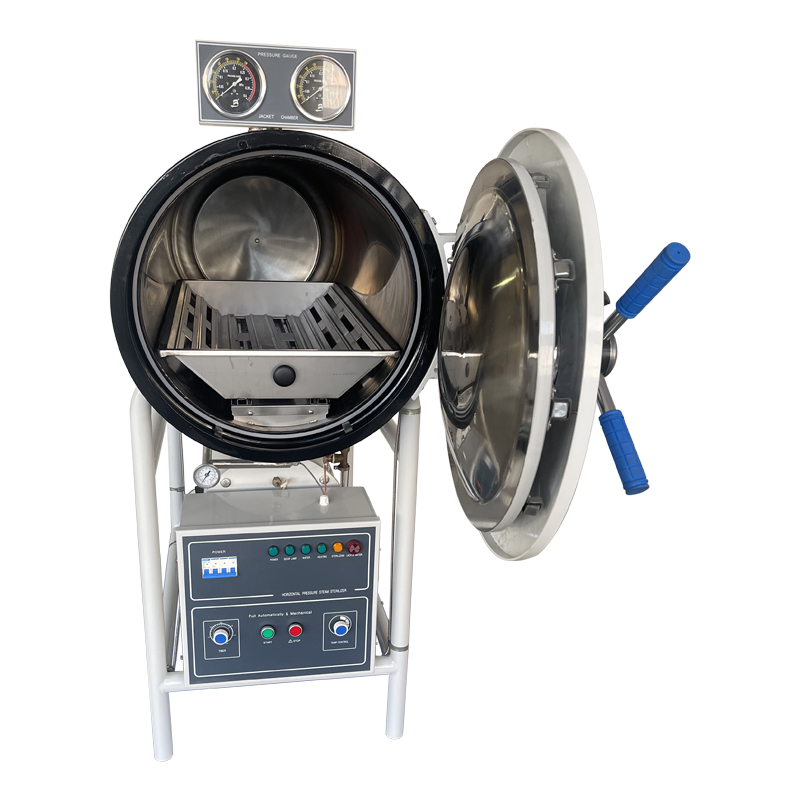

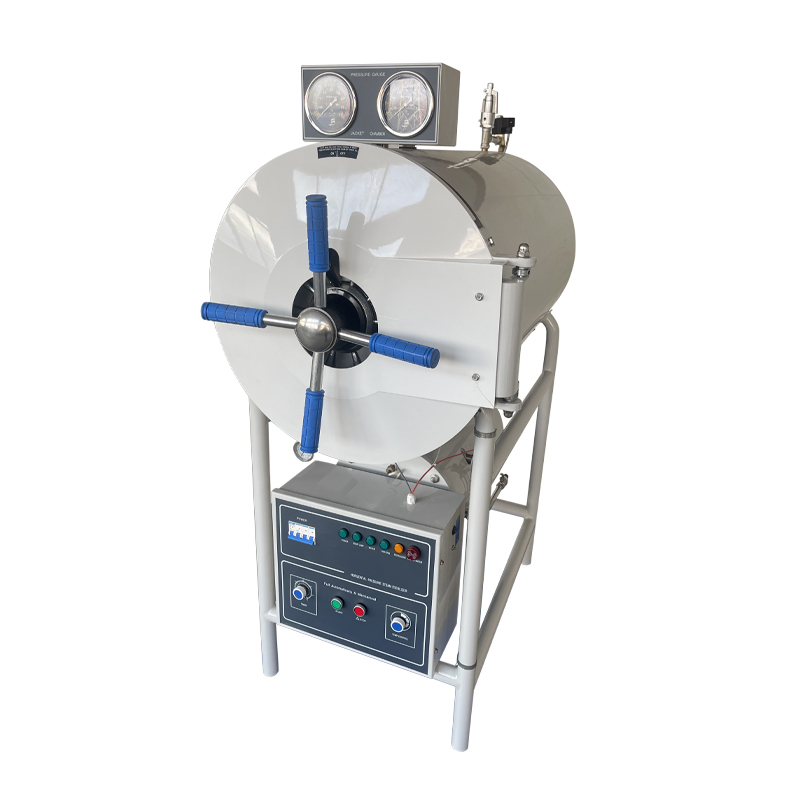

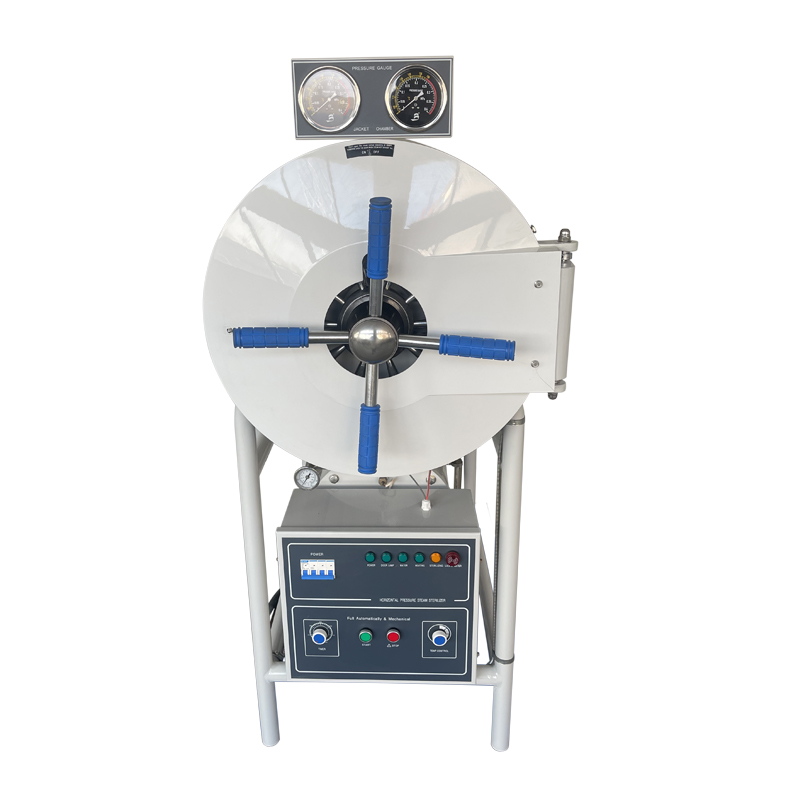

Welso WYDA Series Horizontal Cylindrical Pressure Steam Autoclave is designed with a gravity air-exchange system to remove cold air completely, ensuring reliable and uniform sterilization. The automatic control system regulates steam inlet and outlet according to chamber temperature, making the sterilizing process efficient and safe. With drying function, stainless steel chamber, and comprehensive safety protections, this unit is an ideal solution for clinics, laboratories, and research institutes.
Features

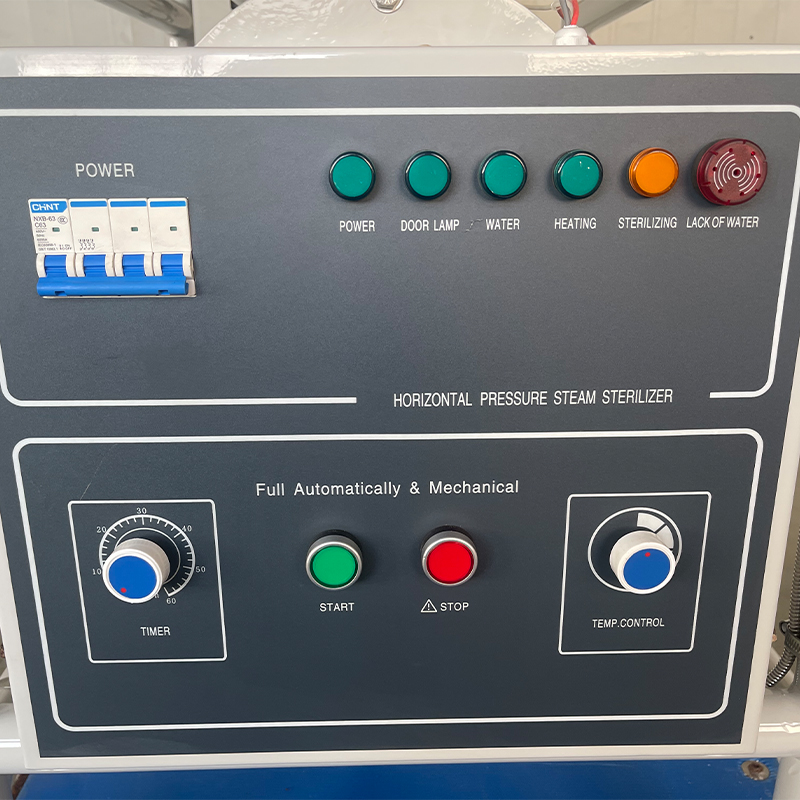

Automatic control of the sterilization cycle, simple and user-friendly operation.
Built-in drying function, ideal for medical dressing and fabric sterilization.
Over-temperature and over-pressure protection system for safe operation.
Safety interlock prevents the door from opening until chamber pressure drops below 0.027 MPa.
Automatic safety valve releases steam if pressure exceeds 0.24 MPa.
Power supply automatically cuts off in case of water leakage, accompanied by an alarm.
Durable chamber constructed from high-quality stainless steel.
Technical data:
Technical Data | WYDA150 | WYDA200 | WYDA280 | WYDA400 | WYDA500 | ||||
Sterilizing Chamber Volume | 150L φ440×1000mm | 200L φ515×1000mm | 280L φ600×1000mm | 400L Φ700×1100mm | 500L Φ700×1300mm | ||||
Working Pressure | 0.22MPa | ||||||||
Working Temperature | 134℃ | ||||||||
Adjustment Of Temperature | 105℃ - 134℃ | ||||||||
Time Of Sterilization | 0-60 min | ||||||||
Time Of Drying | 0-60 min | ||||||||
Heat Average | ≤±2℃ | ||||||||
Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz | 18KW/380V 50Hz | 18KW/380V 50Hz | ||||
.Dimension | 1350×600×1520 | 1400×670×1650 | 1400×770×1780 | 1430×880×1830 | 1800×900×1820 | ||||
Transport Dimension | 1560×750×1850 | 1560×820×1930 | 1680×920×1950 | 1600×1050×2050 | 1850×1050×2050 | ||||
G.w/N.w | 320/278 KG | 378/318 KG | 465/391 KG | 530/456 KG | 627/540 KG | ||||
