Autoclave
Product Details

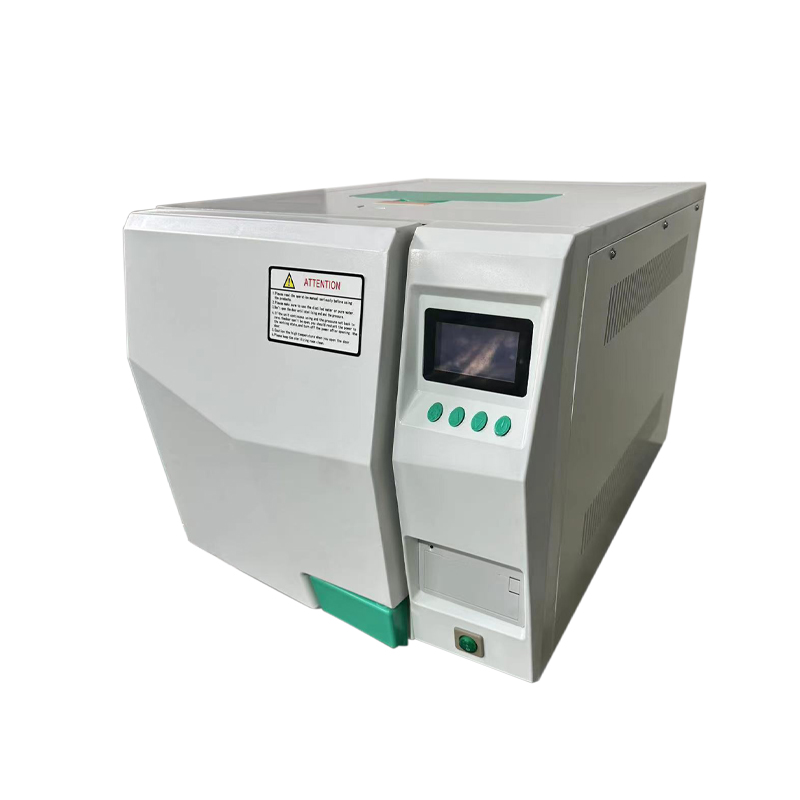

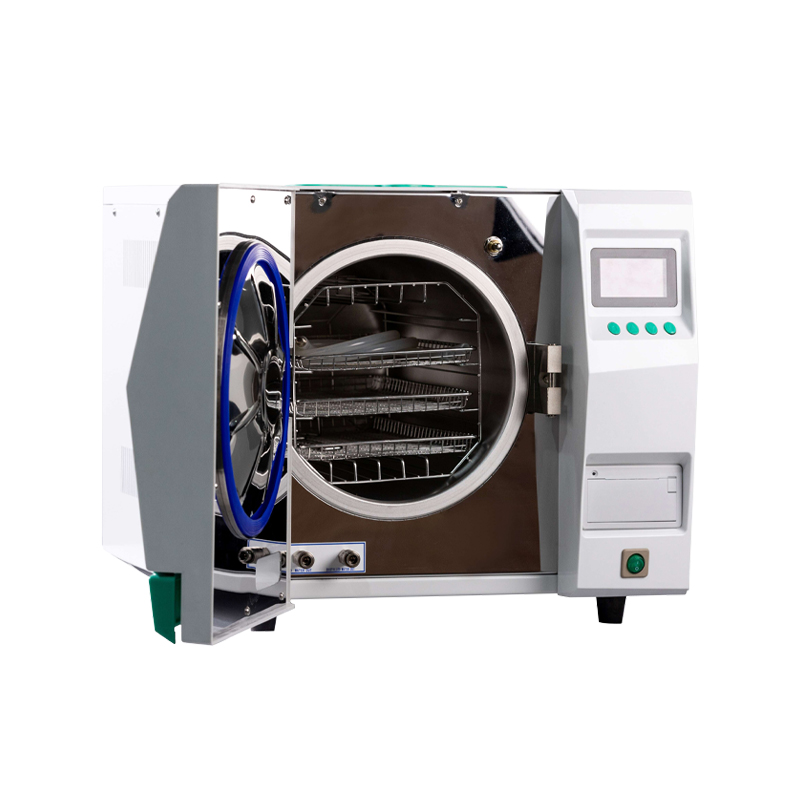

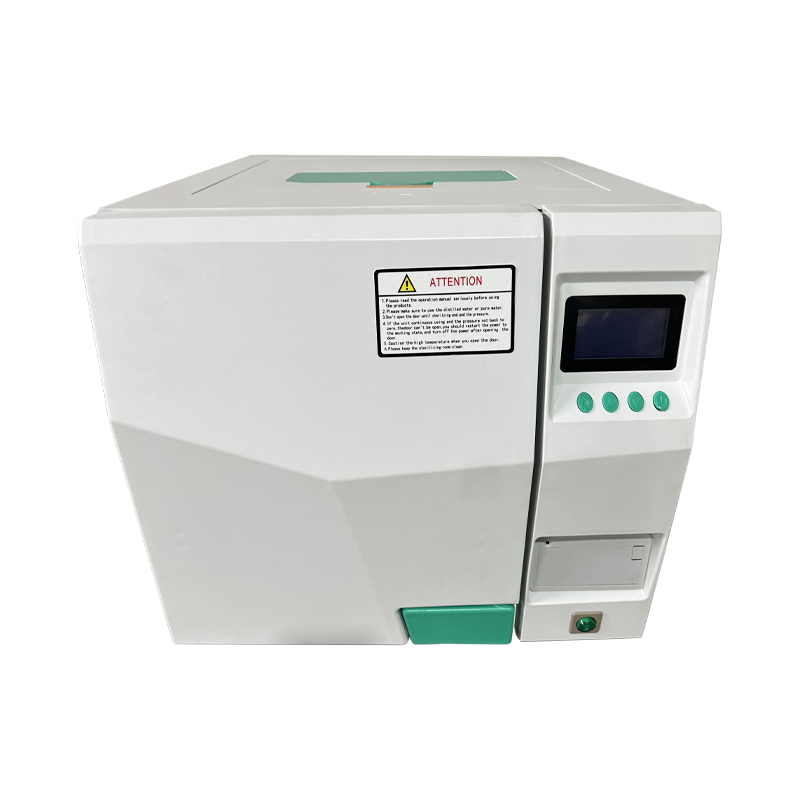

The WTM-XD20DV/WTM-XD24DV autoclave provides efficient sterilization by using high-pressure saturated steam. It eliminates viruses, bacteria, and spores through a precise combination of steam penetration and controlled temperature cycles. With vacuum exhaust and heating jacket technology, it ensures both sterilization and complete drying, making it suitable for healthcare, pharmaceutical, and scientific laboratories.
Product Highlights:
Fully automated sterilization cycle with minimal supervision
Pulse vacuum exhaust (≥3 times) for effective sterilization of complex and hollow instruments
Drying function ensures sterile and dry outcomes
Built-in printer records each sterilization cycle for traceability
Bowie & Dick test function for reliable steam penetration validation
Easy maintenance with automatic malfunction self-check
Safety Features:
Door lock with pressure safety interlock
Automatic pressure relief if chamber exceeds set limits
Low-water level protection with system shut-off
Over-current protection for electrical safety
Technical Parameters
Model | WTM-XD20DV | WTM-XD24DV |
Chamber Volume | 20 Liters（φ250×360 mm） | 24 Liters（φ250×450 mm） |
Max working temperature | 134℃ | 134℃ |
Max working pressure | 0.22MPa | 0.22MPa |
Adjusted sterilizing temperature range | 105℃~134℃ | 105℃~134℃ |
Adjusted timer range | 0~99min | 0~99mins |
Adjusted drying time range | 0~99min | 0~99mins |
Hot Average | ≤±1℃ | ≤±1℃ |
Power supply | AC220V/50HZ | AC220V/50HZ |
Dimension | 480*680*455mm | 480*680*455mm |
Transport dimension | 580*790*580mm | 580*790*580mm |
Gross/Net Weight | 56kg/47kg | 57kg/53kg |
