Autoclave
Product Details
The Vertical Steam Autoclave is designed with a high-performance heating system and advanced micro-computer control. Equipped with overheat and overpressure protection, it ensures safe and reliable sterilization for a wide range of applications. With automatic steam exhaust, intelligent shut-off, and energy-saving operation, this autoclave guarantees consistent sterilizing results.
Key Features:
Fully stainless steel structure for durability and hygiene
Digital display with easy touch-key operation
Automatic cool air exhaust and steam discharge after sterilization
Auto shut-off with alarm reminder upon cycle completion

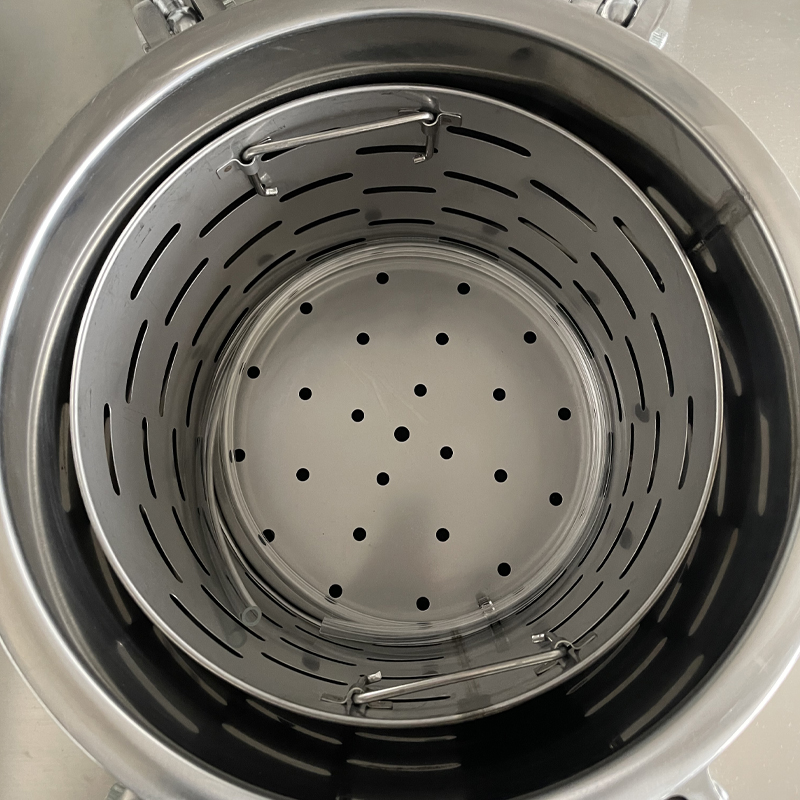

Includes two stainless steel sterilizing baskets
Safe, convenient, and reliable performance
Ideal for hospitals, clinics, research institutes, and laboratories, the Vertical Steam Autoclave is perfect for sterilizing surgical instruments, fabrics, glassware, and culture media.
Technical Data：
Model technical data | WLS-35LD(automatic) | WLS-50LD(automatic) | WLS-75LD(automatic) | WLS-100LD(automatic) | WLS-120LD | WLS-150LD | |||||
Chamber volume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600)mm | 100L(φ440×650)mm | 120L(φ480×660)mm | 150L(φ510×740)mm | |||||
working pressure | 0.22MPa | ||||||||||
Working temperature | 134℃ | ||||||||||
Max working pressure | 0.23 Mpa | ||||||||||
Heat average | ≤±1℃ | ||||||||||
Timer | 0～99min or 0～99hour59min | ||||||||||
Adjustment of temperature | 105～134℃ | ||||||||||
Power | 2.5Kw/AC220V.50Hz | 3Kw/AC220V.50Hz | 4.5Kw/AC220V.50Hz | 6Kw/AC220V.50Hz | 6Kw/AC220V.50Hz | ||||||
Overall dimension | 470×450×840(mm) | 520×500×970(mm) | 550×530×990(mm) | 580×560×1060(mm) | 630×610×1130(mm) | 660×640×1130(mm) | |||||
Transport dimension | 540×540×970(mm) | 580×580×1090(mm) | 610×610×1110(mm) | 640×640×1170(mm) | 690×690×1240(mm) | 730×730×1240(mm) | |||||
G.W/N.W | 61Kg/ 46Kg | 73Kg/56Kg | 87Kg/67Kg | 95Kg/73Kg | 116Kg/ 101Kg | 130Kg/111Kg | |||||
