Autoclave
Product Details
This vertical steam autoclave is constructed from high-grade stainless steel, offering excellent durability and extended service life. Ideal for laboratories, clinics, and research institutions, it combines secure operation with advanced safety features. The hand-wheel quick-open door and safety lock system provide convenient access, while the self-inflating seal ensures airtight sterilization. With protections against over-temperature, over-pressure, and water shortage, this laboratory sterilizer delivers consistent and safe results.
Key Features:
Fully stainless steel vertical steam autoclave design

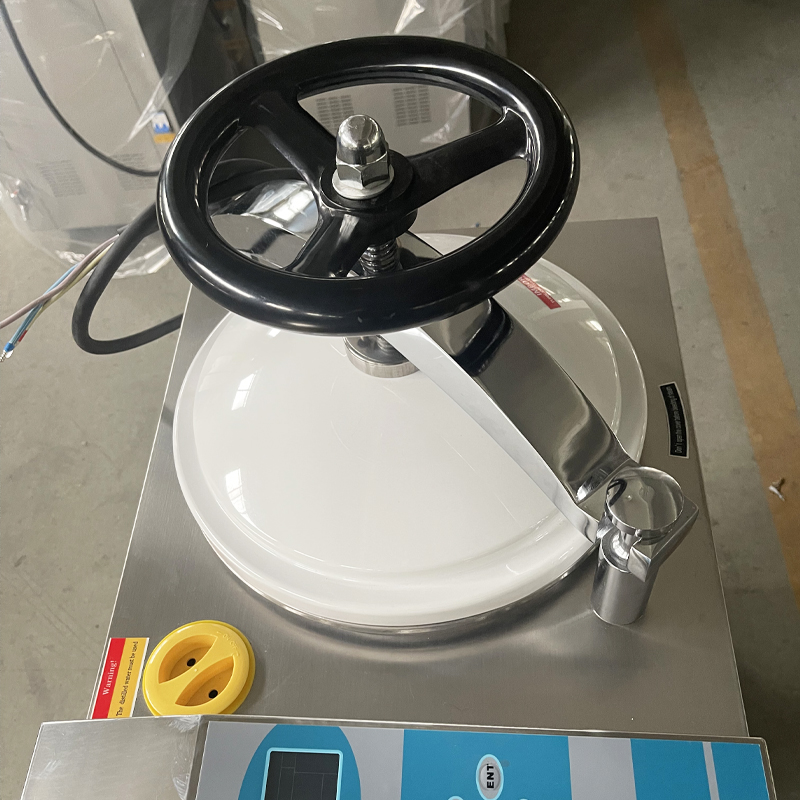

Hand-wheel quick-open door with advanced safety lock
Self-inflating seal for reliable airtight sterilization

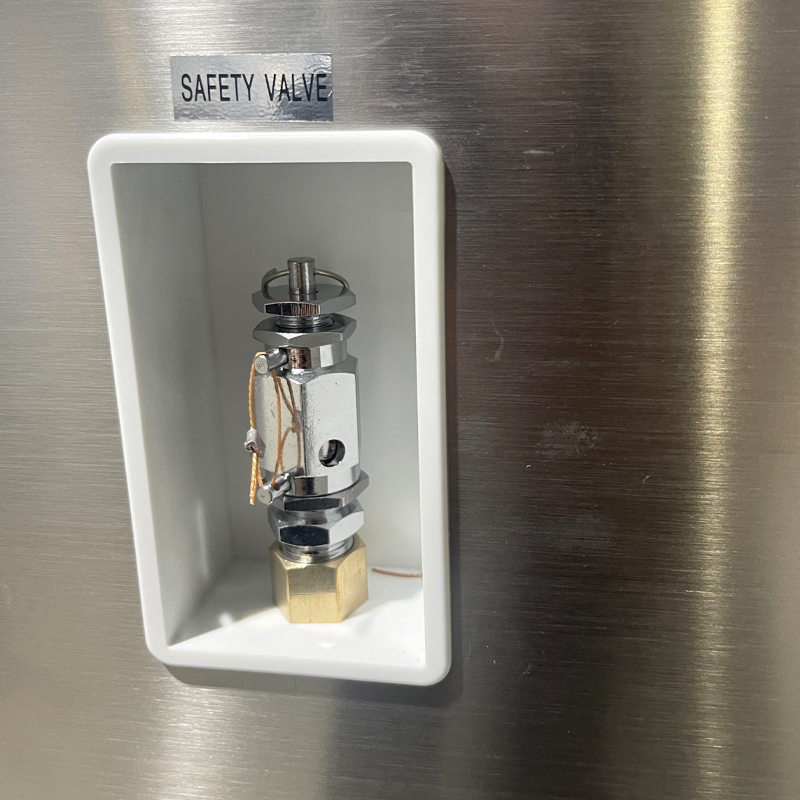

Built-in protections: over-temperature, over-pressure, water shortage
Technical Data:
Model technical data | WLS-35HG | WLS-50HG | WLS-75HG | WLS-100HG |
Chamber volume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600)mm | 100L(φ440×650)mm |
working pressure | 0.22MPa | |||
Working temperature | 134℃ | |||
Max working pressure | 0.23 Mpa | |||
Heat average | ≤±1℃ | |||
Timer | 0～99min or 0～99hour59 min | |||
Adjustment of temperature | 105～134℃ | |||
Power | 2.5KW/AC220V.50Hz | 3KW /AC220V.50Hz | 4.5KW /AC220V.50Hz | |
Overall dimension | 680×410×1040(mm) | 710×460×1150(mm) | 750×510×1250(mm) | 750×510×1250(mm) |
Transport dimension | 710×480×1140(mm) | 750×550×1280(mm) | 780×600×1380(mm) | 780×600×1380(mm) |
G.W/N.W | 104Kg/ 85Kg | 122Kg/ 99Kg | 146Kg/120Kg | 148/122Kg |
