Autoclave
Product Details

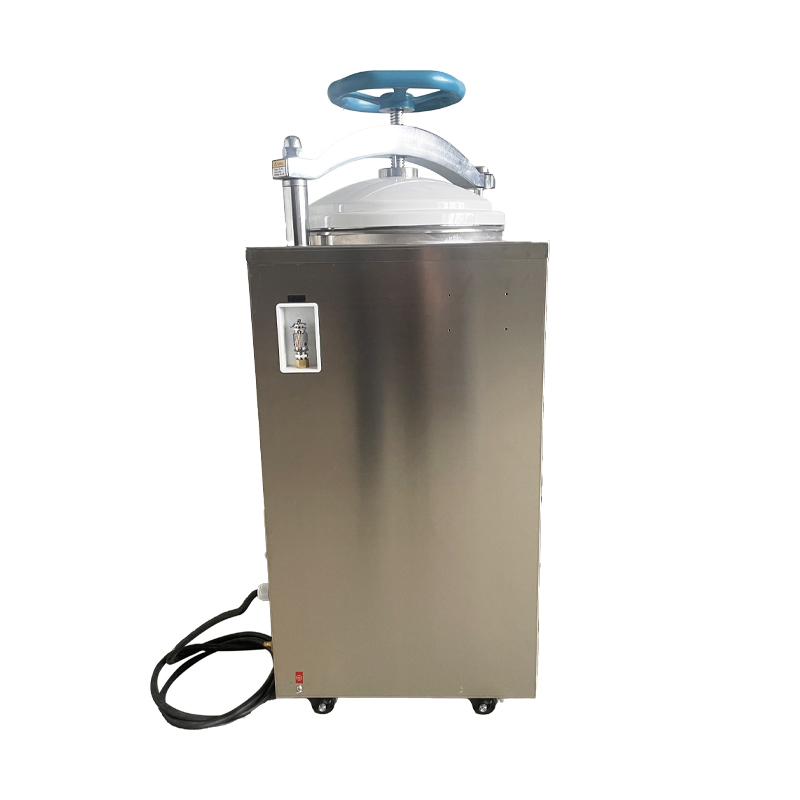

The WLS-HD Vertical Autoclave is constructed with a full stainless steel structure, ensuring durability and corrosion resistance. It adopts a hand wheel quick-open door design with a reliable safety lock system, guaranteeing secure operation. The LCD digital display provides real-time working status, while the automatic exhaust and steam release functions enhance sterilization efficiency. With multiple safety features such as over-temperature and over-pressure protection, as well as water shortage safeguards, the unit delivers stable and dependable performance for laboratories and medical facilities.
Features
●Full stainless steel structure for durability and corrosion resistance
●Hand wheel quick-open door with safety lock system
●LCD digital display with easy touch-key operation
●Automatic air release and steam discharge after sterilization
●Multiple safety protections: over-temperature, over-pressure, and water shortage

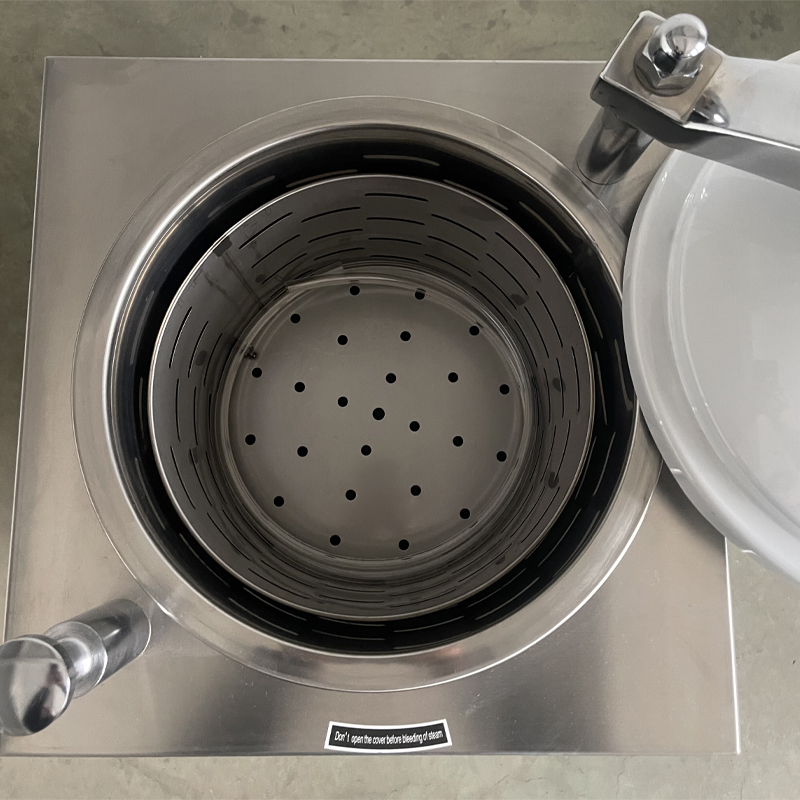

●Supplied with two stainless steel sterilizing baskets
●Optional drying system available for enhanced performance
Technical Data:
Model technical data | WLS-35HD(automatic) | WLS-50HDI(automatic) | WLS-75HD(automatic) | WLS-100HD(automatic) |
Chamber volume | 35L(φ318×450)mm | 50L(φ340×550) mm | 75L(φ400×600) mm | 100L(φ440×650) mm |
working pressure | 0.22MPa | |||
Working temperature | 134℃ | |||
Max working pressure | 0.23 Mpa | |||
Heat average | ≤±1℃ | |||
Timer | 0～99min or 0～99hour59min | |||
Adjustment of temperature | 105～134℃ | |||
Power | 2.5Kw/AC220V.50Hz | 3Kw/AC220V.50Hz | 4.5Kw/AC220V.50Hz | |
Overall dimension | 470×450×1020(mm) | 520×500×1150(mm) | 550×530×1180 (mm) | 580×560×1290 (mm) |
Transport dimension | 540×540×1140(mm) | 580×580×1250(mm) | 610×610×1280(mm) | 640×640×1360(mm) |
G.W/N.W | 81Kg/63Kg | 94Kg/ 74Kg | 113Kg/ 93Kg | 125Kg/ 105Kg |
